Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 52POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：26
- Number of Positions：52
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

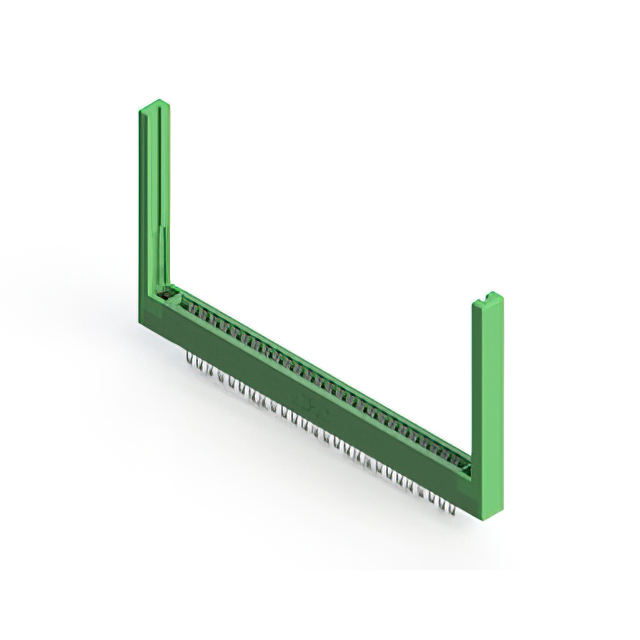

The EDAC Inc. 306-026-400-168 is a standard card edge connector featuring 52 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and is designed to accept printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts rated for 5 A current, housed within a thermoplastic insulator body. It supports vertical panel mounting and operates reliably within a temperature range of -40°C to +105°C.
Feature Summary
- Accepts 0.062 inch nominal thickness PCBs
- Low profile insulator body design
- Gold-plated copper alloy contacts
Applications
- High-speed data handling systems
- FPGA interface connections
- Industrial control system backplanes
Procurement Notes
Verify the specific plating finish and contact material against the official datasheet before procurement. Confirm that the board thickness matches the 0.062 inch specification to ensure proper mechanical engagement. Check regional availability as supply may be restricted or limited depending on the distributor location.
Selection Notes
Select this connector when a single-row card edge interface with 3.96 mm pitch is required. Ensure the application demands vertical panel mounting and can accommodate the specified 1.57 mm board thickness. Verify thermal requirements fall within the -40°C to +105°C operational range.
Part Context
This component belongs to the EDAC 306 series of card edge connectors. The series is characterized by a consistent 0.156 inch contact spacing across various position counts. It serves as a standardized interconnect solution for modular electronic assemblies requiring robust mechanical retention and reliable electrical performance.
Replacement Considerations
Substitutes must match the 52-position count, 3.96 mm pitch, and single-row layout. Verify compatibility with 0.062 inch PCB thickness and vertical panel mount orientation. Cross-reference pinout and contact plating specifications to ensure functional equivalence.
