306-026-420-101

$12.34

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:5465dfe1e975 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：26
Number of Positions：52
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-026-420-101

Overview

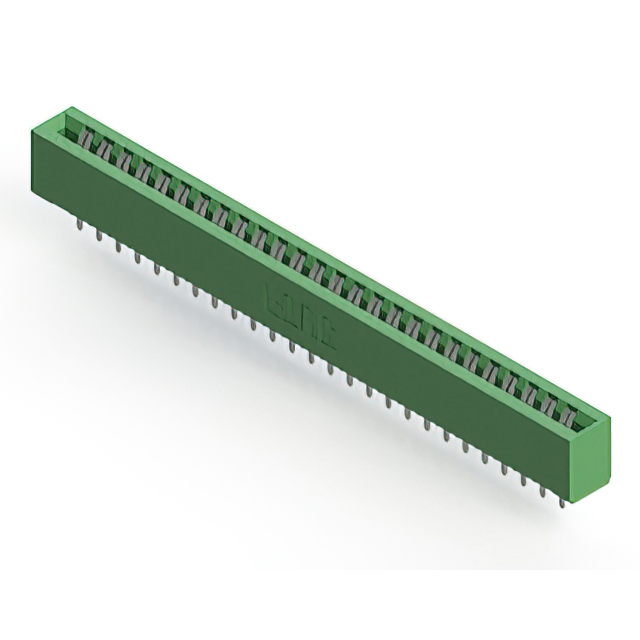

The EDAC Inc. 306-026-420-101 is a standard card edge connector receptacle featuring 52 positions with a 3.96 mm (0.156 inch) contact spacing. Designed for dual-edge board insertion, it utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator body. The component supports a nominal PCB thickness of 1.57 mm (0.062 inch) and offers a current rating of 5 A. It employs solder pin termination for secure panel mounting.

Feature Summary

Dual-edge female connector design accommodating standard PCB thicknesses
Gold-plated contacts ensure reliable signal transmission and corrosion resistance
Thermoplastic polyester housing provides structural stability and insulation

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Computing hardware module interfaces

Procurement Notes

Verify the specific ordering suffix to confirm plating type and terminal configuration. Ensure compatibility with the target PCB's edge thickness and slot dimensions. Confirm RoHS compliance status through official manufacturer documentation prior to integration into regulated assemblies.

Selection Notes

Select this model for applications requiring high-density connections within a single row profile. The 3.96 mm pitch balances connection density with mechanical robustness. Verify that the mating card edge meets the required dimensional tolerances for proper insertion force and retention.

Part Context

This component belongs to the EDAC 306 series of edgeboard connectors. The series is characterized by low-profile insulator bodies and standardized contact spacings. It serves as a standard solution for vertical panel mount applications in electronic systems requiring durable card-to-board connectivity.

Replacement Considerations

Compatible substitutes include the 306-026-420-108 and 306-026-420-112 variants from the same manufacturer family. These alternatives share identical mechanical specifications but differ in contact plating materials.
