306-026-420-103

$14.09

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:368d7ff73350 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：26
Number of Positions：52
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-026-420-103

Overview

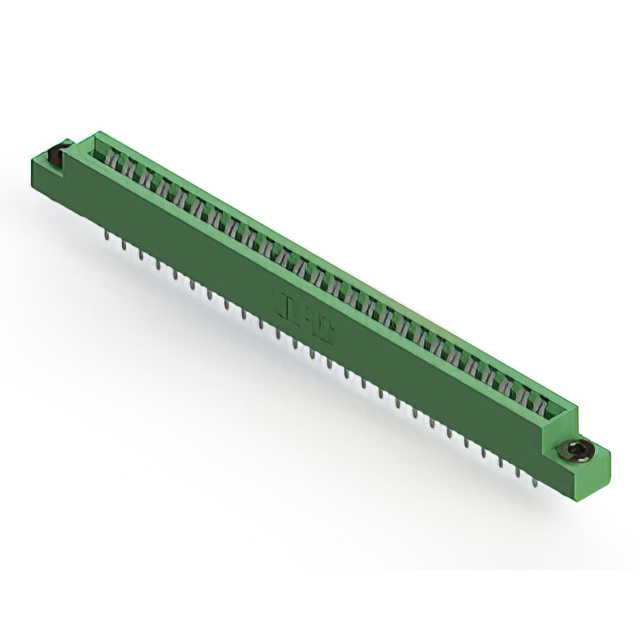

The EDAC Inc. 306-026-420-103 is a standard card edge connector receptacle designed for vertical panel mount applications. It features a dual female configuration with 52 positions and a contact spacing of 0.156 inches (3.96 mm). The unit utilizes gold-plated copper alloy contacts and a thermoplastic polyester housing, supporting a board thickness of 1.57 mm. Termination is achieved via solder pins, ensuring reliable electrical connections in high-density circuit board interfaces.

Feature Summary

Dual-edge female contact configuration for secure board retention
Gold-plated copper alloy contacts for enhanced conductivity
Vertical panel mount design with solder pin termination

Applications

High-density electronic circuit board interconnects
Panel-mounted modular system assemblies
Industrial control unit signal routing

Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your PCB stack-up and mating card dimensions. Ensure that the required contact spacing and termination style match your assembly process specifications before finalizing procurement orders.

Selection Notes

Select this component when a dual-sided card edge interface is required for vertical mounting. The 0.156-inch pitch accommodates standard board widths, while the gold plating offers durability for repeated insertions. Confirm that the panel mount orientation aligns with your chassis design constraints.

Part Context

This connector belongs to the EDAC 306 series, which specializes in standard density card edge solutions. The series provides robust mechanical stability for industrial environments, utilizing durable thermoplastic polyester insulators to maintain structural integrity under thermal cycling conditions.

Replacement Considerations

Direct substitutes within the same series include variants such as 306-026-420-168, which shares similar dimensional characteristics but may differ in plating material or color coding. Verify exact pin count and pitch compatibility before cross-referencing.
