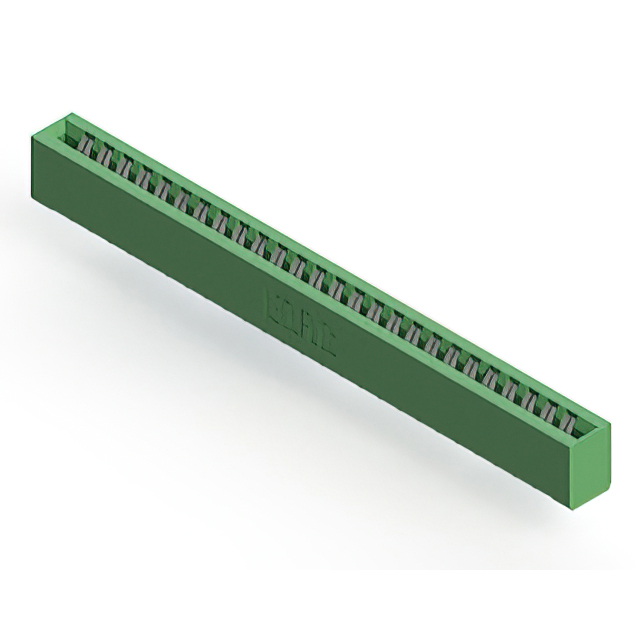

306-026-421-101

$12.34

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:52c3ab4a3bb8 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：26
Number of Positions：52
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-026-421-101

Overview

The EDAC Inc. 306-026-421-101 is a standard card edge connector receptacle featuring 26 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for vertical panel mount installation. The connector supports a 1.57 mm board thickness and employs gold-plated copper alloy contacts with a solder pin termination type. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C.

Feature Summary

Vertical panel mount design for secure integration
Gold-plated copper alloy contacts for reliable conductivity
Single row receptacle configuration

Applications

Standard card edge interface connections
Panel-mounted electronic assemblies
Industrial control system interconnects

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the 1.57 mm board thickness requirement aligns with your PCB design specifications to ensure proper mechanical fit and contact engagement.

Selection Notes

Select this component when a single-row, vertical card edge connector with a 3.96 mm pitch is required. Ensure the application environment falls within the specified -40°C to +105°C operating temperature range and that the PCB thickness matches the 1.57 mm specification for optimal performance.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations, providing standardized solutions for board-to-board or backplane connections. The 306 series is characterized by its robust thermoplastic polyester housing and reliable solder pin termination methods.

Replacement Considerations

Cross-reference with other EDAC 306 series parts sharing the same 3.96 mm pitch and 26-position count. Verify mechanical dimensions and electrical ratings against alternative suppliers' equivalents to ensure functional compatibility without redesigning the host PCB.
