Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 52POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：26
- Number of Positions：52
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

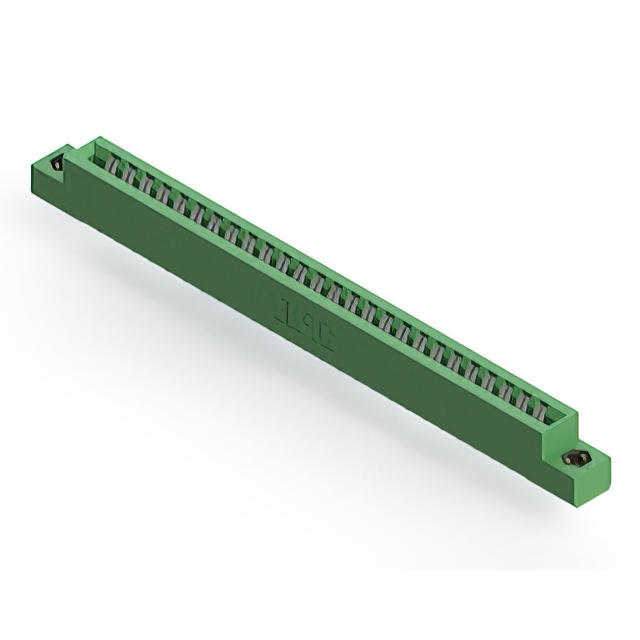

The EDAC Inc. model 306-026-421-108 is a standard card edge connector receptacle from the 306 series. It features 52 positions with a 3.96 mm pitch and supports dual-edge mating. The unit utilizes tin-plated copper alloy contacts rated for 5 A current. Designed for panel mount installation at a vertical angle, it accommodates a board thickness of 1.57 mm. The housing is constructed from thermoplastic polyester in green color, ensuring reliable signal transmission in industrial applications.
Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Vertical panel mount design for stable structural integration
- Tin-plated copper alloy contacts providing corrosion resistance
- Thermoplastic polyester housing for durable insulation
Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Medical device circuit board interfaces
- Consumer electronics modular assemblies
Procurement Notes
Verify the specific ordering suffix to confirm contact plating type, as variations exist within the 306 series. Confirm that the required board thickness matches the 1.57 mm specification. Ensure the application environment does not exceed the thermal limits of the thermoplastic polyester material. Cross-reference the pin count against the target PCB layout to guarantee compatibility with the 52-position requirement.
Selection Notes
Select this component when a dual-edge connection is required for a 52-line interface. The 3.96 mm pitch dictates the minimum trace spacing on the mating PCB. Consider the tin plating if lead-free soldering processes are mandated. Evaluate the vertical mounting style against available panel space constraints compared to surface mount alternatives.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and plating options. The 306 series is characterized by its thermoplastic polyester construction and panel mount versatility. It serves as a foundational component for general-purpose electronic interconnects requiring robust mechanical retention.
FAQ
What is the contact plating material for this specific part number?
The contacts are plated with tin.
Does this connector support single or dual edge mating?
It is designed for dual-edge mating configurations.
