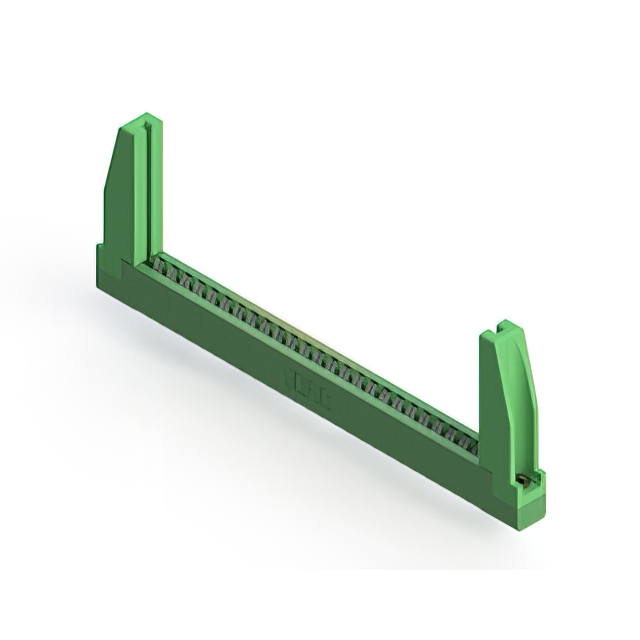

306-026-421-178

$14.70

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:d9a6c963232f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：26
Number of Positions：52
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-026-421-178

Overview

The EDAC Inc. 306-026-421-178 is a standard card edge connector from the 306 Series, designed for through-hole mounting with a straight orientation. It features 52 positions arranged in a dual-edge configuration with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contact plating is specified as tin, and the insulator body is constructed from green thermoplastic polyester.

Feature Summary

Accepts .062" (1.57mm) nominal thickness P.C. Board
Low profile insulator body design
.156" (3.96mm) contact spacing with single centreline row

Applications

Industrial control systems
Telecommunications equipment
Consumer electronics assemblies

Procurement Notes

Verify the specific contact plating requirement against project specifications, as distributor listings may vary between tin and gold finishes for this part number. Confirm that the dual-edge female configuration aligns with the mating card edge design. Ensure the through-hole termination method is compatible with the assembly process. Check regional availability restrictions as some distributors may not stock this item locally.

Selection Notes

Select this component when a low-profile card edge solution with 3.96 mm spacing is required. The dual-edge configuration supports higher pin counts within a compact footprint. Verify that the board thickness tolerance matches the 1.57 mm specification. Consider the tin plating if cost efficiency is prioritized over high-cycle durability compared to gold alternatives.

Part Context

This connector belongs to the EDAC 306 Series, which provides standard density card edge solutions. The series offers various position counts and mounting styles. The 306-026-421-178 specifically utilizes a green insulator and tin-plated contacts, distinguishing it from gold-plated variants in the same family.
