306-026-520-168

$14.70

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:85549de2a0e3 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 52POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：26
Number of Positions：52
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-026-520-168

Overview

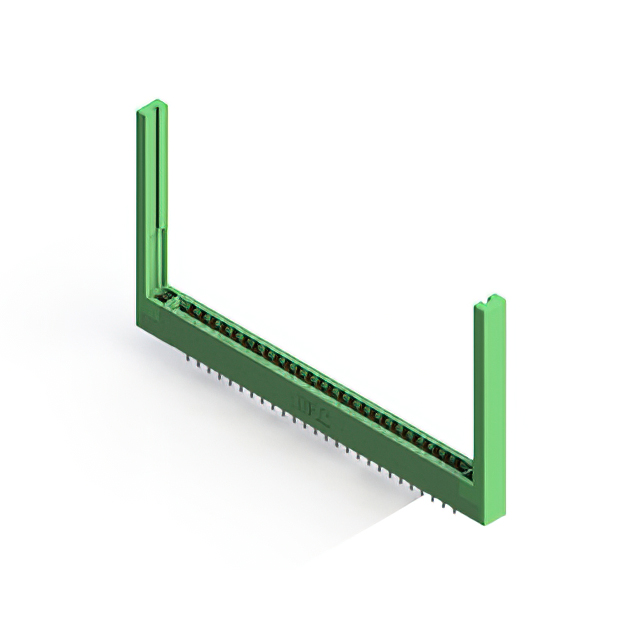

The EDAC Inc. 306-026-520-168 is a standard card edge connector from the 306 Series, designed for dual-edge board insertion. It features 52 positions arranged in two rows with a 3.96 mm (0.156 inch) contact spacing. The connector utilizes female copper alloy contacts with gold plating and a green thermoplastic insulator. Rated for 5 A current, it supports PCB thicknesses between 1.37 mm and 1.78 mm. Operating temperatures range from -40°C to +105°C, with an insulation resistance of 5 GOhms.

Feature Summary

Dual-edge female contact configuration for secure board retention
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic insulator provides structural stability and electrical isolation

Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronics mainboard connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, contact material, and flange specifications. Ensure compatibility with target PCB thickness and panel mounting requirements before procurement. Cross-reference distributor part numbers with EDAC official documentation to avoid substitution errors.

Selection Notes

Select this component when a dual-edge card interface with 3.96 mm pitch is required. Consider the 5 A current rating and -40°C to +105°C temperature range for environmental suitability. Verify that the target printed circuit board thickness falls within the specified 1.37 mm to 1.78 mm acceptance window for proper mechanical engagement.

Part Context

This component belongs to the EDAC 306 Series, which specializes in standard density card edge connectors. The series offers various position counts and mounting styles, utilizing consistent 3.96 mm spacing across models. The 306-026-520-168 represents a high-density variant within this family, optimized for applications requiring robust dual-sided connectivity.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with differing position counts or flange configurations. No alternative part numbers are publicly confirmed as functionally identical replacements.
