306-027-500-158

$15.05

Description：CONN EDGE DUAL FMALE 54POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:859b4eb26d9e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 54POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：27
Number of Positions：54
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-027-500-158

Overview

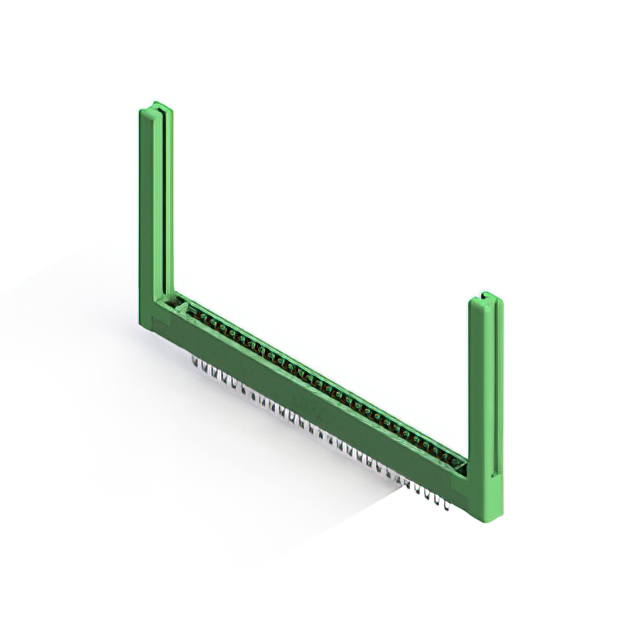

The EDAC Inc. 306-027-500-158 is a dual female card edge connector from the 306 Series, designed for board-to-board or backplane applications. It features 54 positions with a 0.156-inch (3.96mm) centerline spacing and a 0.460-inch (11.68mm) insulator height. The contacts are gold-plated copper alloy, housed in a green thermoplastic body. This through-hole device supports standard PCB mounting.

Feature Summary

Dual female contact configuration for reliable signal transmission
Gold-plated contacts ensure corrosion resistance and low contact impedance
Green thermoplastic housing provides mechanical stability and visual identification

Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Consumer electronics internal board connections

Procurement Notes

Verify the specific pin count and spacing against the target PCB footprint before ordering. Confirm that the gold plating thickness meets the required cycle life specifications for the intended application environment. Ensure the through-hole mounting style aligns with the assembly process capabilities of the manufacturing facility.

Selection Notes

Select this component when a dual-row female connector with 0.156-inch spacing is required. Consider the 0.460-inch insulator height for proper board clearance. Evaluate the thermal and mechanical requirements to ensure the green thermoplastic material is suitable for the operating conditions.

Part Context

This part belongs to the EDAC 306 Series, which offers various configurations for card edge applications. The series includes different pin counts and spacing options to accommodate diverse design needs. EDAC provides comprehensive datasheets and CAD models to support integration into electronic assemblies.

Replacement Considerations

Cross-reference compatible parts within the EDAC 306 Series family. Verify identical electrical ratings and mechanical dimensions before substituting. Consult official EDAC documentation for approved alternate part numbers.
