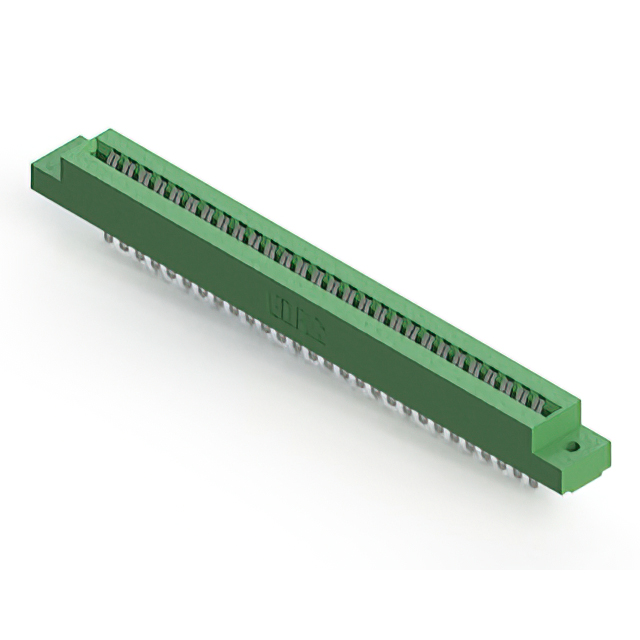

306-028-400-102

$13.02

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:8a4611a6d050 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-028-400-102

Overview

The EDAC Inc. 306-028-400-102 is a card edge connector from the 306 series, designed for board-edge mounting applications. It features a dual female configuration with 56 positions arranged in a single centerline row. The connector utilizes a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a low-profile insulator body, it provides reliable electrical interconnection for edgeboard applications.

Feature Summary

Dual female contact configuration for secure board retention
Single centerline row design accommodating standard PCB thickness
Low-profile insulator body for compact assembly requirements

Applications

Edgeboard interconnection systems
Industrial control panel assemblies
Telecommunications equipment backplanes

Procurement Notes

Verify that the specific part number matches the required 56-position dual female configuration and 0.156-inch pitch specifications. Confirm compatibility with the target PCB thickness of 0.062 inches to ensure proper mechanical fit. Check RoHS compliance status and moisture sensitivity level ratings against project environmental requirements before finalizing procurement orders.

Selection Notes

Select this component when a dual-sided female connection is required for a 56-line interface. Ensure the application accommodates the 0.156-inch spacing constraint. Verify that the single centerline row architecture aligns with the available routing space on the mating edgeboard. Consider the low-profile form factor if vertical clearance within the enclosure is limited.

Part Context

This connector belongs to the EDAC 306 series, which specializes in card edge solutions. The series offers various pin counts and spacing options to support diverse electronic integration needs. The 306-028-400-102 variant specifically addresses high-density requirements through its 56-position layout while maintaining standard industry-compatible dimensions for widespread adoption.

Replacement Considerations

Cross-reference compatible parts within the same 306 series family. Verify identical pin count, pitch, and mounting style before substitution. Consult official EDAC documentation for direct equivalent listings.
