306-028-500-112

Overview

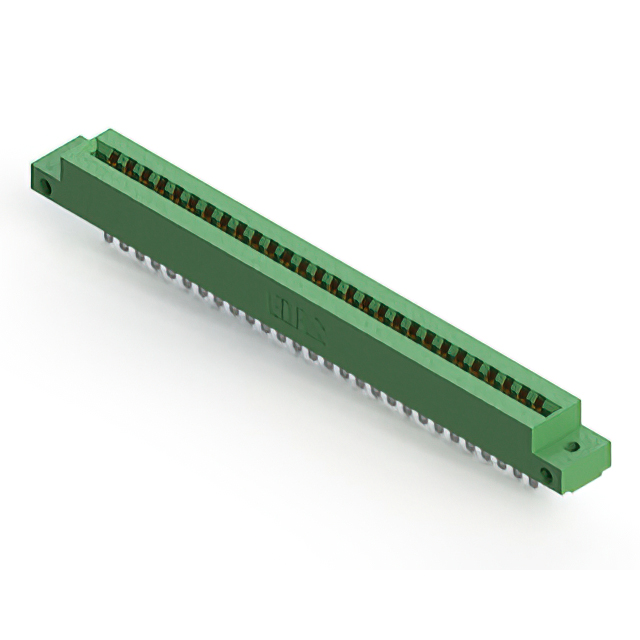

The EDAC Inc. 306-028-500-112 is a dual-edge female card edge connector from the 306 series, featuring 56 positions arranged in two rows of 28. It utilizes a 0.156-inch (3.96mm) pitch and employs gold-plated cantilever contacts for reliable signal transmission. Designed for panel mounting via solder holes, the unit accepts board thicknesses between 0.054 and 0.070 inches. The housing is constructed from green thermoplastic polyester, ensuring durability within an operating temperature range of -40°C to 105°C.

Feature Summary

• Dual-edge female configuration with cantilever contact design for secure board insertion
• Gold plating on contact areas ensures corrosion resistance and stable electrical performance
• Thermoplastic polyester insulation provides structural integrity across wide temperature ranges
• Panel mount installation with flat flange and top opening for straightforward integration

Applications

• Medical interconnect solutions including ventilators and CPAP machines
• Ambulance medical equipment connectivity
• Hospital room medical device interfaces

Procurement Notes

Verify the complete part number 306-028-500-112 against manufacturer datasheets to confirm compatibility with specific board thicknesses and mounting requirements. Ensure that the procurement channel provides original EDAC Inc. products to guarantee RoHS compliance and material specifications. Cross-reference the ordering guide for the 306 series to validate pin count and spacing parameters before finalizing orders.

Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required for panel-mounted applications. The 56-position capacity suits designs needing substantial I/O density within a compact footprint. Consider the cantilever contact type for ease of insertion and removal during maintenance or module replacement scenarios in medical or industrial environments.

Part Context

This connector belongs to the EDAC 306 series, which specializes in card edge connectors with 0.156-inch spacing. The series offers various position counts and termination styles, catering to diverse electronic assembly needs. The 306-028 variant specifically addresses applications requiring 28 positions per row, balancing connectivity density with mechanical stability for standard PCB implementations.

Replacement Considerations

Consult the official EDAC 306, 316, and 356 Series Ordering Guide for verified substitute part numbers. Direct replacements must match the 0.156-inch pitch, 56-position count, and dual-edge female configuration to ensure mechanical and electrical compatibility without redesigning the host panel.
