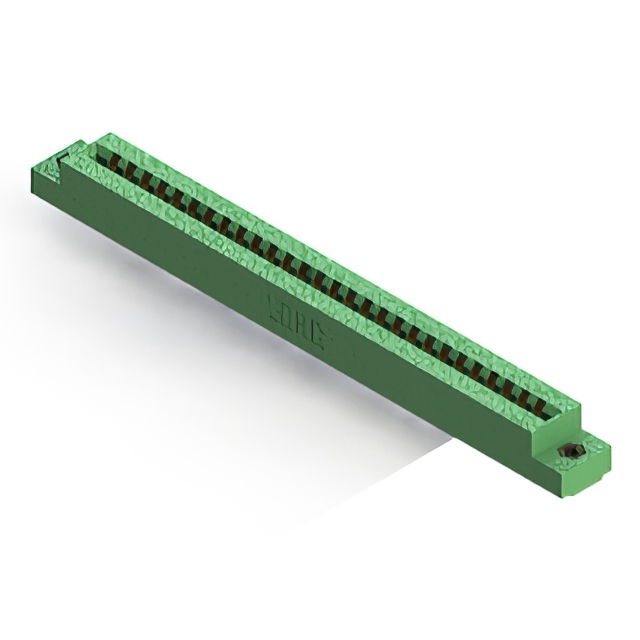

306-028-520-108

$14.76

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:acf4114db997 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-028-520-108

Overview

The EDAC Inc. 306-028-520-108 is a dual-edge card edge connector featuring 56 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes gold-plated female contacts and thermoplastic housing, rated for 5A current and +105°C operation. The design includes 28 PC tail type contacts for secure board termination.

Feature Summary

Dual-edge configuration for high-density signal routing
Gold-plated female contacts ensure reliable conductivity
Thermoplastic housing provides thermal stability

Applications

Industrial control systems
Telecommunications equipment
Medical interconnect solutions

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and housing color specifications. Ensure compatibility with the target PCB thickness of 1.57mm and panel mounting requirements. Confirm that the 56-position layout aligns with the design footprint before procurement.

Selection Notes

Select this component for applications requiring robust dual-edge connectivity with high current ratings. The 0.156-inch pitch supports standard card edge designs. Verify insulation resistance and operating temperature limits against environmental constraints.

Part Context

This part belongs to the EDAC 306 Series, designed for general-purpose interconnect needs. The series offers various position counts and mounting options. It is engineered for durability in industrial and commercial environments requiring stable electrical connections.

Replacement Considerations

Cross-reference with other 306-series variants for alternative pin counts or mounting styles. Verify mechanical dimensions and contact spacing compatibility when substituting.
