306-028-520-158

$15.37

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:816868e76de5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 56POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：56
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-028-520-158

Overview

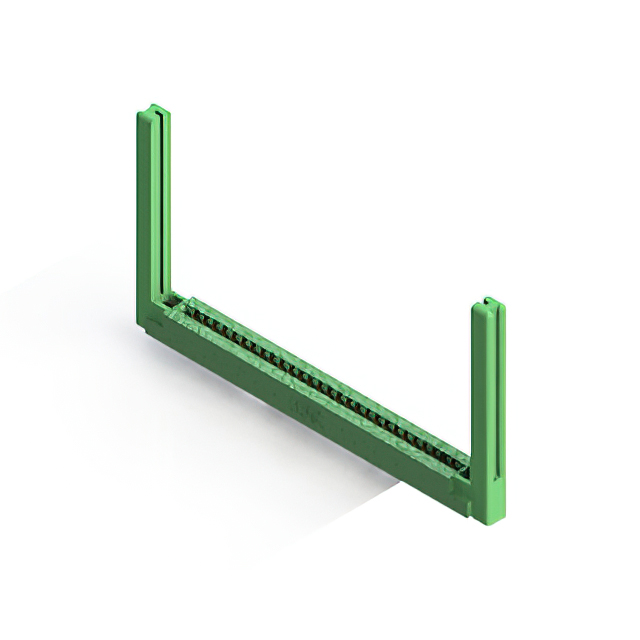

The EDAC Inc. 306-028-520-158 is a dual-edge female card edge connector designed for panel mounting. It features 56 positions arranged in two rows with 28 contacts per row, utilizing a 0.156-inch (3.96 mm) pitch. The connector employs cantilever contact types with gold plating and is housed in green thermoplastic polyester insulation. It supports PCB thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Feature Summary

Dual-edge female configuration with cantilever contacts for secure board insertion
Gold-plated terminals ensure reliable electrical performance and corrosion resistance
Thermoplastic polyester insulation provides stability across wide temperature ranges
Panel mount design with flange features for fixed installation

Applications

Industrial control systems requiring robust interconnects
Medical equipment needing durable signal connections
Agricultural technology applications in harsh environments
General industrial automation hardware

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 306 Series Ordering Guide to confirm exact pin count, termination style, and packaging details. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status if required by project regulations.

Selection Notes

Select this component when a dual-edge female connector with 56 total positions is required. Verify that the application environment falls within the specified -40°C to 105°C operating range. Ensure the mating card thickness aligns with the supported 0.054 to 0.070 inch specification for proper mechanical engagement.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various configurations for different industry needs, including medical and agricultural solutions. The 306 series is characterized by its reliability and durability in demanding operational settings.

Replacement Considerations

Consult the official EDAC 306 Series Ordering Guide for verified substitute part numbers. Cross-reference pin counts, pitch dimensions, and termination methods to ensure functional equivalence.
