306-028-520-168

Overview

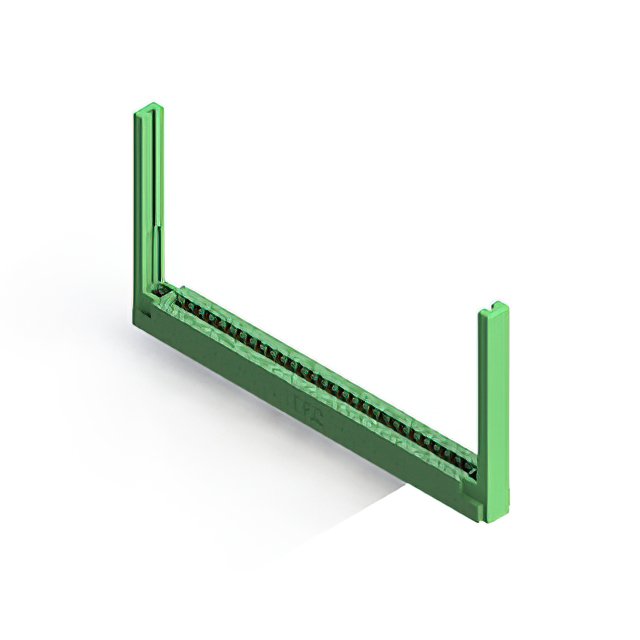

The EDAC Inc. model 306-028-520-168 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 56 positions arranged in two rows. The contact spacing is 3.96 mm (0.156 inches), and the unit accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are gold-plated copper alloy, while the insulator body is constructed from thermoplastic material.

Feature Summary

• Dual row female card edge interface
• Gold-plated copper alloy contacts
• Panel mount vertical installation style

Applications

• Medical interconnect solutions
• Ambulance equipment connections
• Ventilator system interfaces
• CPAP machine connections

Procurement Notes

Verify the specific part number against official EDAC documentation to confirm current availability status. Check for regional sales restrictions or limited supply conditions that may affect procurement timelines. Ensure compatibility with required board thickness and mounting configurations before ordering.

Selection Notes

Select this component when a dual-row card edge connector with 56 positions is required. Confirm that the application supports a 3.96 mm pitch and a 1.57 mm board thickness. Verify that panel mount vertical installation aligns with the mechanical design requirements of the target assembly.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. It is categorized under headers within the broader connector family. The product serves as an interface solution for connecting flexible or rigid printed circuit boards in specialized industrial and medical environments.

Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other series without verifying pin count, pitch, and mechanical dimensions against the original specification sheet.
