Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 58POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

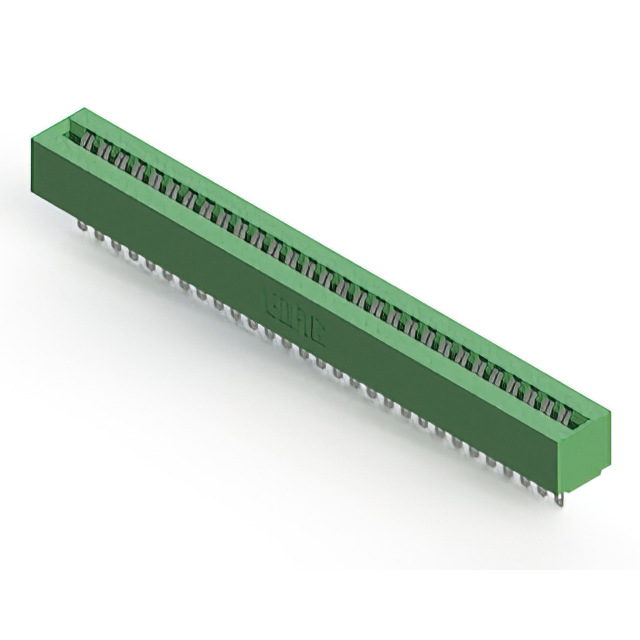

The EDAC Inc. 306-029-400-101 is a standard card edge connector receptacle featuring 58 positions with dual female contacts. It utilizes a 3.96 mm (0.156 inch) pitch and accepts printed circuit boards with a nominal thickness of 1.57 mm. The component employs gold-plated copper alloy contacts and tin-plated termination pins for reliable signal transmission. Designed for vertical panel mount installation, the housing is constructed from green thermoplastic polyester to provide structural integrity and insulation in electronic assemblies.
Feature Summary
- Dual edge female contact configuration ensures secure mating with double-sided card edge PCBs
- Vertical panel mount orientation facilitates direct integration into chassis or enclosure panels
- Gold-plated contact surfaces enhance conductivity and corrosion resistance over repeated insertion cycles
Applications
- Industrial control system backplanes requiring robust board-to-board connectivity
- Telecommunications equipment chassis mounting for signal distribution modules
- Test and measurement instrumentation interfaces demanding high reliability
Procurement Notes
Verify that the target application requires a 3.96 mm pitch and 1.57 mm board thickness compatibility before procurement. Confirm that the dual-edge female contact style aligns with the specific PCB design requirements. Ensure environmental conditions remain within the operational limits defined by the manufacturer's datasheet specifications.
Selection Notes
Select this component when a vertical panel mount solution with a 3.96 mm pitch is required for dual-sided card edge applications. The 58-position count suits systems needing moderate I/O density. Verify that the thermoplastic polyester housing material meets the thermal and mechanical constraints of the intended deployment environment.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and pitch options to accommodate diverse electronic interconnection needs. The 306-029-400-101 specifically addresses applications requiring a 58-position dual-edge interface with a 3.96 mm spacing.
FAQ
What is the nominal printed circuit board thickness accepted by this connector?
The connector accepts a nominal PCB thickness of 1.57 mm.
Does this connector support single-sided or double-sided card edge PCBs?
It features a dual female contact configuration designed for double-sided card edge PCBs.
