Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 58POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

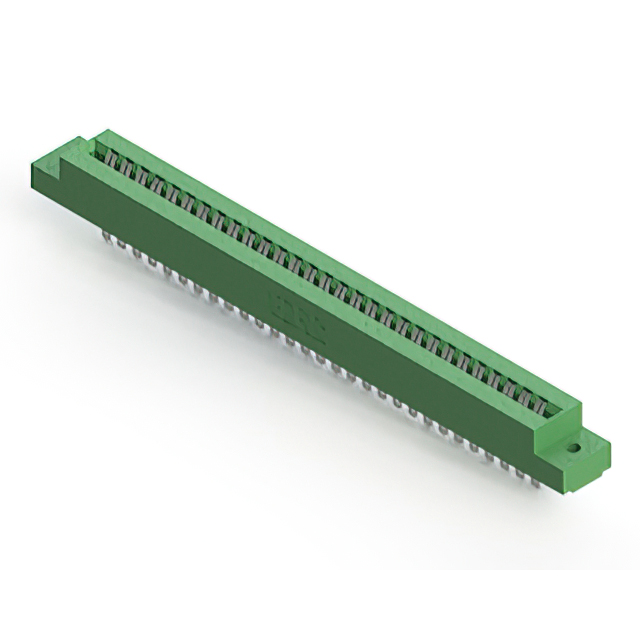

The EDAC Inc. 306-029-400-102 is a dual female card edge connector featuring 58 positions with a 0.156-inch (3.96 mm) centerline spacing. Designed for vertical panel mount installation, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component utilizes gold-plated contacts and a low-profile insulator body to ensure reliable signal transmission in high-density applications.
Feature Summary
- Dual female contact configuration for secure board insertion
- Low-profile insulator body design for space-constrained environments
- Gold-plated contacts for enhanced conductivity and corrosion resistance
Applications
- Computing and storage systems
- Industrial control modules
- Communications network equipment
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and mounting variations. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components and confirm current manufacturing status.
Selection Notes
Select this connector when a dual-row interface with 0.156-inch pitch is required for vertical panel mounting. Confirm that the application environment supports the specified operating temperature range. Evaluate mechanical stability requirements against the low-profile housing design to ensure adequate retention force for the target PCB assembly.
Part Context
This component belongs to the EDAC 306 Series, which provides versatile interconnect solutions for card edge and rack-and-panel applications. The series is recognized for offering multiple row configurations and mounting options. EDAC designs these connectors to meet rigorous quality standards for global distribution channels in technology sectors.
Replacement Considerations
Consult official EDAC substitution guides for verified alternative part numbers within the 306 series or compatible families. Verify dimensional tolerances and electrical ratings match before substituting.
