306-029-400-103

Overview

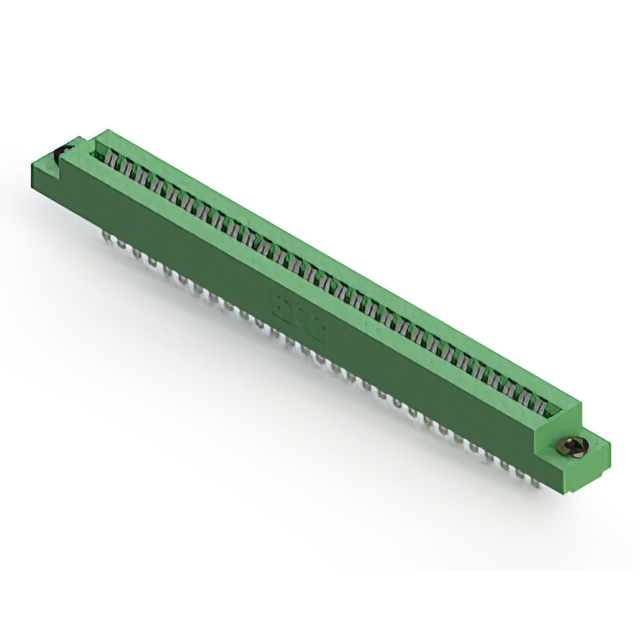

The EDAC Inc. 306-029-400-103 is a standard card edge connector featuring 58 positions arranged in a single row of female contacts. It utilizes a 0.156-inch (3.96 mm) centerline pitch and employs solder eyelet terminals for board attachment. The unit incorporates a green insulator and includes mounting flanges for secure installation. Designed for vertical orientation, it operates within a temperature range of -40°C to +105°C.

Feature Summary

• Dual-sided contact configuration for enhanced signal routing capacity
• Integrated mounting flanges ensure stable mechanical alignment during assembly
• Solder eyelet termination method provides robust electrical connection reliability

Applications

• High-speed data handling systems requiring FPGA integration
• Industrial control system backplanes
• Medical device interconnects
• Aerospace communication networks

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm terminal type and insulation color. Confirm that the selected variant matches the required 0.156-inch pitch and vertical mounting style. Ensure compatibility with the target PCB thickness and hole dimensions before finalizing procurement orders.

Selection Notes

Select this component when a single-row, dual-sided interface is required for high-density applications. The 0.156-inch pitch accommodates standard board layouts while the flanged design simplifies chassis mounting. Consider the operating temperature range and soldering requirements to ensure environmental and process compatibility.

Part Context

This part belongs to the EDAC 306 series, which specializes in card edge connectors for computing, storage, and industrial sectors. The series offers diverse configurations for rack and panel applications, emphasizing quality assurance and global distribution support for OEMs in technology and clean energy markets.

Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative pin counts or insulator colors. Verify dimensional drawings and contact plating specifications when evaluating potential substitutes from other manufacturers to ensure mechanical and electrical interchangeability.
