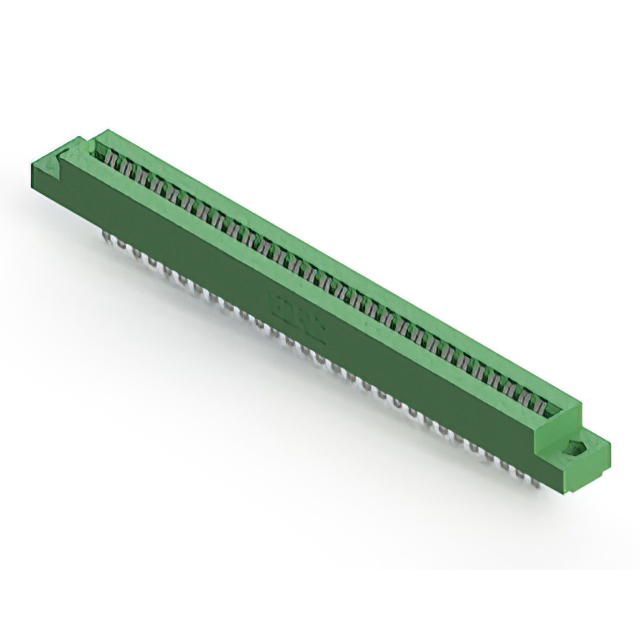

306-029-400-104

$13.34

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:51199e4936c9 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-029-400-104

Overview

The EDAC Inc. model 306-029-400-104 is a standard card edge connector receptacle featuring 58 positions with a 3.96 mm (0.156 inch) contact spacing. It utilizes a single centerline row design and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs tin-plated copper alloy contacts and terminates via solder pin connections. Designed for panel mount installation, it maintains a vertical orientation and incorporates a low-profile insulator body constructed from thermoplastic polyester.

Feature Summary

Single centerline row configuration for standard board insertion
Low-profile insulator body construction
Vertical panel mount installation style

Applications

Industrial control systems
Telecommunications equipment
Consumer electronics assemblies
Medical device interfaces

Procurement Notes

Verify the specific plating finish against project requirements, as distributor listings may indicate variations between tin and gold finishes for this part number. Confirm that the 58-position count aligns with the target PCB layout. Ensure the 1.57 mm board thickness tolerance is compatible with the manufacturing process before finalizing procurement orders.

Selection Notes

Select this component when a single-row, 3.96 mm pitch connection is required for vertical panel mounting. The 58-position capacity suits applications needing moderate density without dual-row complexity. Verify compatibility with 0.062 inch thick PCBs to ensure proper mechanical retention and electrical contact stability during operation.

Part Context

This connector belongs to the EDAC 306 series, which provides standard card edge solutions. The series offers various position counts and termination options to support diverse electronic assembly needs. The 306-029-400-104 variant specifically addresses requirements for 58-position interfaces with reliable solder pin termination methods.

Replacement Considerations

Cross-reference with other EDAC 306 series variants offering identical 58-position counts and 3.96 mm pitch. Verify that alternative suppliers provide components matching the specified 1.57 mm board thickness acceptance and vertical panel mount geometry to maintain system integration integrity.
