Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 58POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

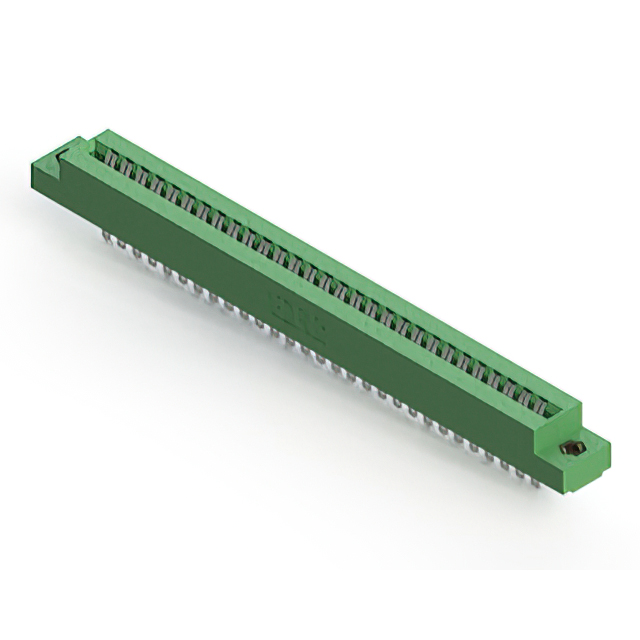

The EDAC Inc. model 306-029-400-107 is a standard card edge connector from the 306 series, designed for panel mount applications. It features 58 positions with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes a dual-edge female configuration with tin-plated copper alloy contacts and a green thermoplastic insulator body.
Feature Summary
- Dual-edge female contact configuration for secure board retention
- Low profile insulator body design for compact integration
- Panel mount installation style with vertical orientation
Applications
- Computing and storage interconnect solutions
- Industrial control system backplanes
- Medical device signal routing
- Communications network equipment interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required contact plating and insulation material specifications. Confirm that the selected variant matches the intended PCB thickness and mounting requirements for the target application environment.
Selection Notes
Select this component when a low-profile, dual-edge connector is required for 3.96 mm pitch applications. Ensure the design accommodates the specified 1.57 mm board thickness and panel mounting constraints. Verify environmental ratings against operational temperature ranges if used in specialized sectors.
Part Context
This part belongs to the EDAC 306 series, established as a leader in card edge and rack & panel connectors since 1966. The series provides interconnect solutions for global OEMs in computing, medical, aerospace, and industrial sectors, emphasizing quality assurance and error-free logistics.
Replacement Considerations
Consult the official EDAC 306 Series Ordering Guide for cross-referenced alternatives. Verify mechanical dimensions and electrical ratings before substituting with other manufacturers' products to maintain interface integrity.
