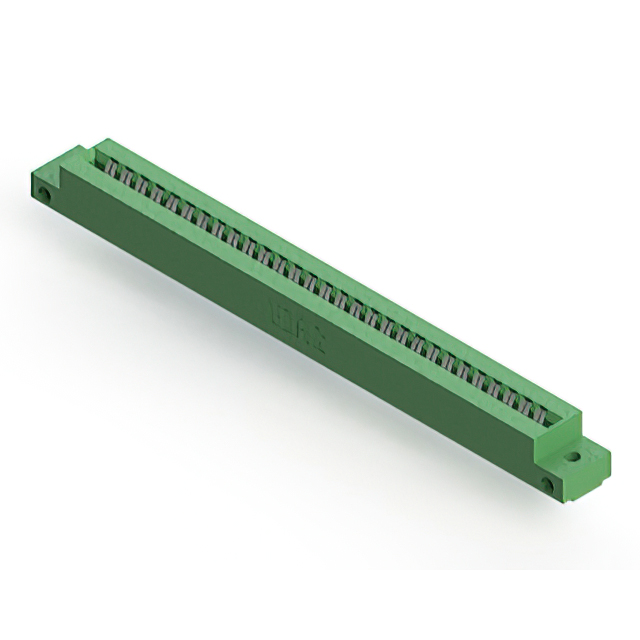

306-029-421-112

$14.42

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:28b473f91b7f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-029-421-112

Overview

The EDAC Inc. 306-029-421-112 is a standard card edge connector receptacle from the 306 series, designed for vertical panel mount installation. It features 58 positions with a single centerline row and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contact plating is tin, and the housing material is thermoplastic polyester. Rated current is 5 A, with an operating temperature range of -40°C to +105°C.

Feature Summary

Vertical panel mount design for secure board retention
Single centerline row configuration for simplified routing
Low profile insulator body construction

Applications

Industrial control systems requiring robust card edge connections
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Procurement Notes

Verify the specific tin plating variant against gold-plated alternatives in the same series if corrosion resistance or conductivity requirements differ. Confirm that the 0.062-inch board thickness specification aligns with your PCB manufacturing tolerances. Ensure the vertical mounting style fits within your enclosure height constraints. Check for any regional distribution restrictions or lead time variations associated with this specific part number.

Selection Notes

Select this component when a single-row, high-pin-count connection is required for 0.062-inch thick boards. The 3.96 mm pitch allows for larger trace spacing compared to finer pitches. Consider the tin plating for cost-sensitive applications where environmental exposure is limited. Verify compatibility with mating edge cards regarding overall height and flange specifications.

Part Context

This connector belongs to EDAC's 306 series, which specializes in standard card edge connectors. The series offers various position counts and plating options. The 306-029-421-112 specifically addresses needs for 58-position interfaces with a single row layout, providing a balance between connectivity density and mechanical stability for panel-mounted applications.

Replacement Considerations

Consider EDAC part numbers 306-029-421-101 or 306-029-421-102 for similar specifications but potentially different plating or packaging. Verify pin count and pitch compatibility before substitution.
