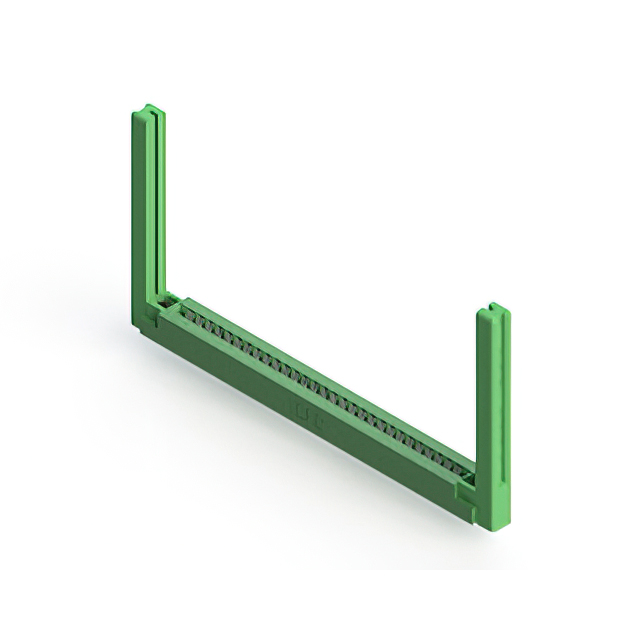

306-029-421-158

$15.68

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:fd24a5fdcac6 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-029-421-158

Overview

The EDAC Inc. 306-029-421-158 is a dual-edge female card edge connector with 58 positions and a 0.156-inch (3.96mm) pitch. It features tin-plated cantilever contacts, a green polyamide insulator, and panel mount installation. Designed for board thicknesses of 0.062 to 0.093 inches, it operates within a temperature range of -55°C to +125°C. The connector includes flange mounting holes and meets RoHS3 standards.

Feature Summary

Dual-edge female contact configuration for reliable signal transmission
Cantilever spring contact design ensures secure board retention
Panel mount construction with integrated flange for stability
Tin-plated contacts provide corrosion resistance

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Medical device circuit boards
Consumer electronics mainboards

Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating type and insulation material. Confirm that the required board thickness falls within the specified operational range. Ensure compatibility with panel mounting requirements and check for any regional distribution restrictions before finalizing procurement orders.

Selection Notes

Select this component when a high-pin-count dual-edge interface is required with a 3.96mm spacing. The tin-plated contacts suit general-purpose applications where gold plating is not mandatory. Verify that the panel mount style aligns with the mechanical enclosure design and that the operating temperature range meets environmental specifications.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various pin counts and configurations for diverse electronic applications. The 306-029-421-158 specifically provides a robust solution for connecting double-sided PCBs in industrial and commercial environments requiring durable mechanical connections.
