306-029-500-112

Overview

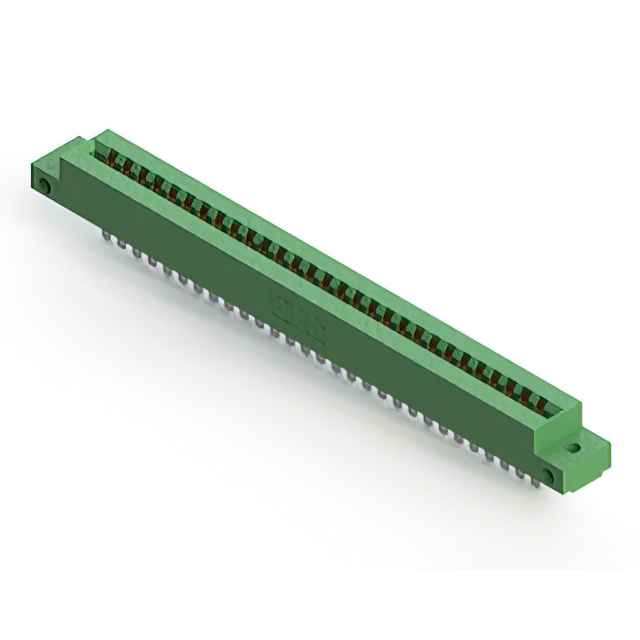

The EDAC Inc. 306-029-500-112 is a dual female card edge connector from the 306 Series, designed for high-reliability interconnect applications. It features a .156 inch (3.96mm) contact spacing and accommodates printed circuit boards with a nominal thickness of .062 inch (1.57mm). The component utilizes 29 wire hole type contacts with gold plating on the contact area to ensure stable electrical performance. Constructed with a low-profile insulator body, this receptacle supports vertical panel mount installation. It is compliant with RoHS standards and lead-free requirements, making it suitable for modern electronic assemblies requiring durable and efficient signal transmission.

Feature Summary

• Features .156 inch contact spacing with a single centerline row configuration
• Accepts .062 inch nominal thickness printed circuit boards
• Utilizes low-profile insulator body design for compact integration
• Incorporates gold-plated wire hole type contacts for reliable conductivity

Applications

• Computing and storage systems
• Medical equipment interfaces
• Aerospace communication networks
• Industrial control panels

Procurement Notes

Verify that the specific part number matches the required board thickness and contact count before ordering. Confirm RoHS compliance status if environmental regulations apply to your assembly. Ensure the panel mount orientation aligns with the mechanical design constraints of the enclosure. Cross-reference the supplier documentation for any recent product change notifications or material updates.

Selection Notes

Select this connector when a .156 inch pitch is required for robust signal integrity in panel-mounted applications. The dual female configuration allows for secure mating with corresponding male headers or card edges. Consider the low-profile body height if space constraints are critical within the device chassis. Verify that the gold plating specification meets the corrosion resistance needs of the operating environment.

Part Context

EDAC Inc. has been a leader in card edge and rack & panel connectors since 1966. The 306 Series represents their range of interconnect solutions for computing, medical, and aerospace sectors. This specific model is part of their broader portfolio designed to deliver superior quality through rigorous inspection processes. The company focuses on providing innovative interconnect products with global distribution support.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
