Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 58POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

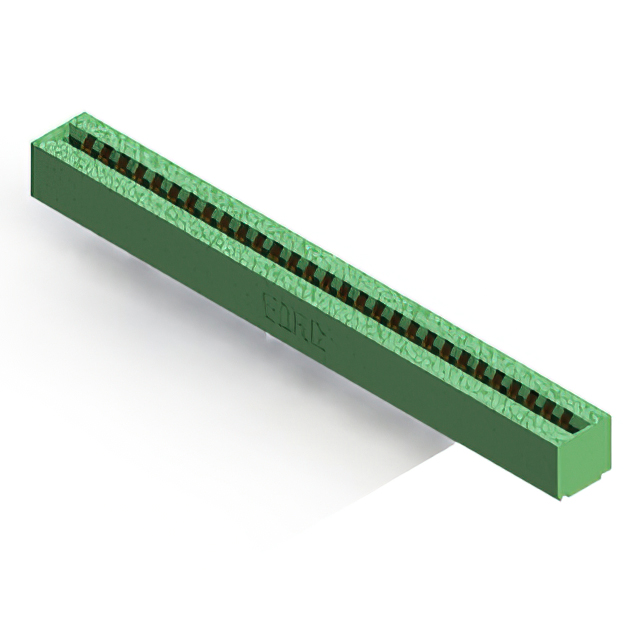

The EDAC Inc. model 306-029-520-101 is a standard card edge connector belonging to the 306 series. It features a dual female configuration with 58 positions and a contact spacing of 0.156 inches (3.96 mm). The insulator body is constructed from green thermoplastic polyester, providing a low-profile design. This component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and utilizes gold-plated contacts for reliable signal transmission.
Feature Summary
- Dual edge female contact configuration for secure board insertion
- Low profile insulator body constructed from thermoplastic polyester
- Gold-plated contacts ensure durable electrical connectivity
Applications
- Standard card edge interface connections
- Electronic module interconnects
- Industrial control system backplanes
Procurement Notes
Verify the specific pin count and gender against project requirements before ordering. Confirm that the target printed circuit board thickness matches the 0.062-inch specification to ensure proper mechanical fit. Check regional availability as distribution status may vary by location. Ensure compatibility with mating edge cards regarding contact spacing and insulation material properties.
Selection Notes
Select this component when a dual-sided connection is required for a single-row contact layout. The 3.96 mm pitch accommodates standard board designs. Consider the green thermoplastic housing for general-purpose applications. Verify that the vertical mounting style aligns with the chassis or panel constraints of the assembly.
Part Context
This connector is part of the EDAC 306 series, which specializes in standard card edge solutions. The series offers various position counts and mounting options. The 306-029-520-101 variant specifically addresses needs for high-density dual-edge connections within a compact footprint, supporting robust industrial and commercial electronic assemblies.
Replacement Considerations
Cross-reference compatible parts within the EDAC 306 series for alternative position counts. Verify that substitute connectors maintain the same 0.156-inch pitch and dual female configuration to ensure mechanical and electrical interchangeability without redesigning the host board.
