306-029-520-102

Overview

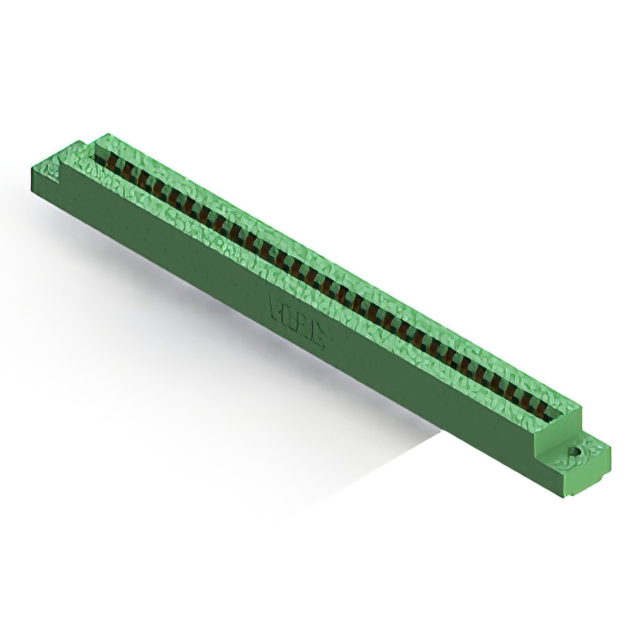

The EDAC Inc. 306-029-520-102 is a standard card edge connector from the 306 series, designed for vertical panel mount applications. It features a dual-edge configuration with 58 positions and a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The insulator body is made of thermoplastic material, providing structural integrity and electrical insulation.

Feature Summary

• Dual-edge receptacle design accommodating two-sided PCB contacts
• Vertical panel mounting style for secure installation
• Gold-plated copper alloy contacts for enhanced conductivity
• Compatible with 1.57 mm nominal thickness printed circuit boards

Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device internal connections
• Consumer electronics assembly

Procurement Notes

Verify the specific revision level and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the receiving board dimensions strictly match the 1.57 mm thickness specification to ensure proper mechanical fit. Check for any recent product change notifications that may affect pinout or material composition. Ensure storage conditions maintain the integrity of the gold plating and thermoplastic housing prior to assembly.

Selection Notes

Select this component when a dual-edge connection is required for high-density signal routing in panel-mounted configurations. The 3.96 mm pitch offers reduced density compared to finer pitches but allows for easier manual handling and soldering processes. Consider the 5 A current rating and 5 GOhms insulation resistance for general-purpose industrial signals. Evaluate the vertical orientation against available panel space constraints.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors, which provides a range of positioning options and termination styles. The series is characterized by its use of thermoplastic insulators and gold-plated contacts, suitable for various environmental conditions. The 306 series supports both single and dual-edge configurations, offering flexibility for different PCB design architectures within the broader EDAC portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 58 position count, 3.96 mm pitch, dual-edge interface, and vertical panel mount style. Verify compatibility with existing tooling and PCB specifications if considering alternative manufacturers.
