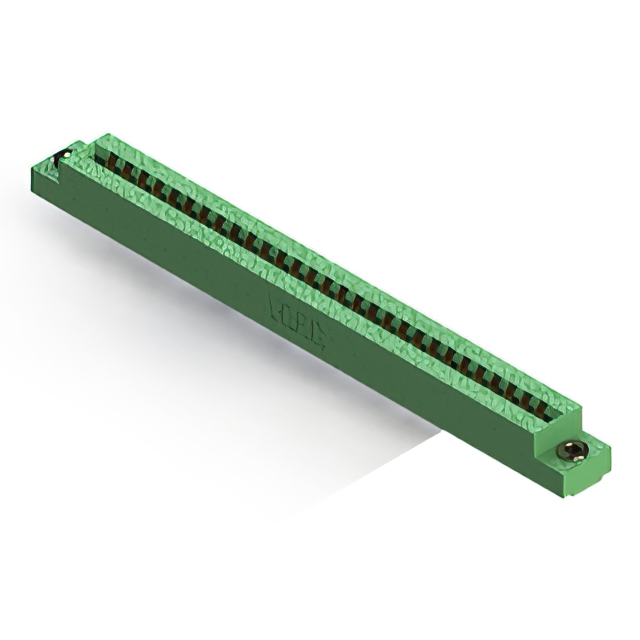

306-029-520-103

$15.07

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:61abc7e3c834 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-029-520-103

Overview

The EDAC Inc. 306-029-520-103 is a standard card edge connector from the 306 series, designed for dual-edge female termination. It features 58 positions with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts that are gold-plated and a green thermoplastic insulator body, it provides reliable electrical performance. The unit supports a current rating of 5 A and offers an insulation resistance of 5 Gohms.

Feature Summary

Dual-edge female configuration for secure board insertion
Gold-plated copper alloy contacts ensure corrosion resistance
Low-profile insulator body design for space-constrained applications

Applications

Industrial control systems requiring robust interconnects
Communication equipment backplanes
Medical device internal circuitry connections

Procurement Notes

Verify the specific part number suffix against official EDAC documentation to confirm exact pin count and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status through the manufacturer's latest datasheet before procurement. Cross-reference the 58-position requirement with system design specifications to avoid mismatch errors during assembly.

Selection Notes

Select this component when a dual-edge female connector with 3.96 mm spacing is required. It is suitable for applications needing a 5 A current rating and gold-plated contacts for durability. Consider the low-profile body height if vertical clearance is limited. Verify that the panel or board mounting style aligns with the mechanical design constraints of the final assembly.

Part Context

This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series is characterized by its .156 inch contact spacing and acceptance of .062 inch nominal PCB thickness. The 306 series is widely used in industrial and commercial electronics where reliable signal transmission and mechanical stability are critical for long-term operation.
