306-029-520-104

Overview

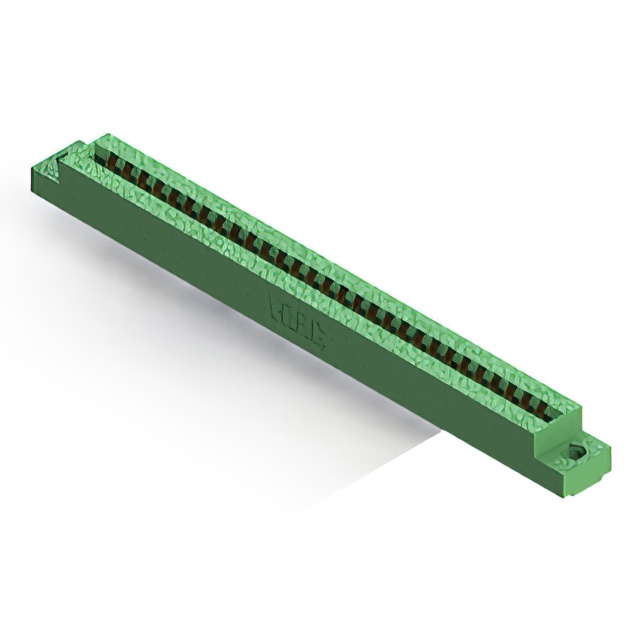

The EDAC Inc. 306-029-520-104 is a standard card edge connector designed for panel mount applications with a vertical orientation. It features a dual female configuration with 58 positions and a pitch of 3.96 mm (0.156 inches). The connector accommodates a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A current, it offers an insulation resistance of 5 GOhms. The housing is constructed from thermoplastic material, providing structural integrity for industrial and commercial electronic assemblies.

Feature Summary

• Dual edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic housing for durable panel mounting
• Vertical installation style for standardized assembly

Applications

• Industrial control system interconnects
• Commercial electronic equipment backplanes
• Telecommunications hardware modules
• General-purpose circuit board interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count, plating specifications, and housing color. Ensure compatibility with the target PCB edge thickness and panel cutout dimensions prior to purchase. Confirm RoHS compliance status through the latest datasheet revision. Cross-reference the manufacturer part number with distributor catalogs to validate availability and lead times in your region.

Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required for vertical panel mounting. Ensure the application environment supports the thermoplastic housing material and that the 5 A current rating meets the circuit requirements. Verify that the 58-position count aligns with the design specifications. Consider the gold plating for corrosion resistance in standard operating conditions.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by robust construction suitable for various electronic applications. The 306-029-520-104 variant specifically denotes the 58-position configuration within this family, maintaining consistent interface standards across the series for interchangeable design implementations.

Replacement Considerations

Consult the official EDAC substitution guide or datasheet for confirmed equivalent part numbers. Verify mechanical dimensions, electrical ratings, and contact configuration before substituting. Generic cross-references may not match the specific 3.96 mm pitch or dual-edge female requirements.
