Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 58POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

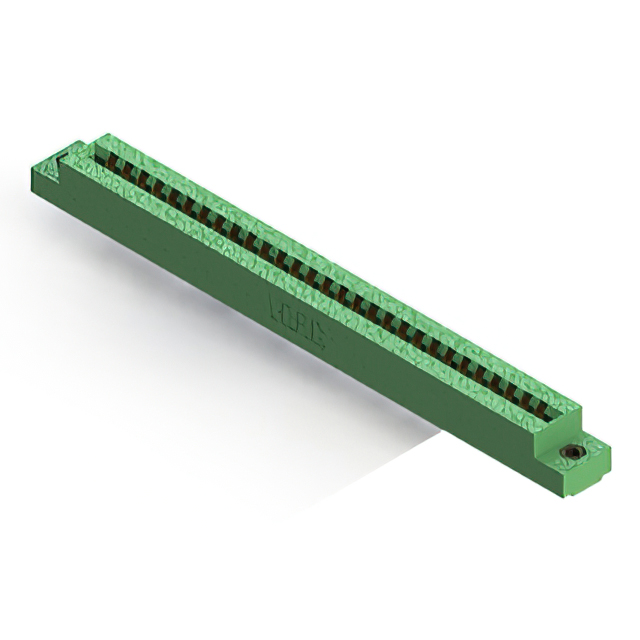

The EDAC Inc. 306-029-520-107 is a standard card edge connector featuring 58 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. Designed for vertical panel mounting, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The component operates within a temperature range of -40°C to +105°C and includes flush mount flanges with M3 threaded inserts.
Feature Summary
- Vertical panel-mount design with integrated flush mount flanges
- Gold-plated copper alloy contacts for reliable signal transmission
- Single centerline row configuration accommodating dual-edge card edges
Applications
- Industrial control systems requiring robust panel interconnects
- Communication equipment backplanes
- Medical device hardware interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required flange types and contact plating specifications. Confirm that the designated PCB thickness aligns with the 1.57 mm acceptance criteria. Cross-reference the pin count and pitch requirements with system schematics prior to procurement to prevent integration errors.
Selection Notes
Select this connector when a high-density single-row interface with substantial mechanical stability is required. The 3.96 mm pitch allows for broader trace spacing compared to finer pitches. Ensure the application environment remains within the specified thermal limits and that the panel mounting style fits the chassis design constraints.
Part Context
This component belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and mounting options tailored for diverse electronic assembly needs. The 306-029-520-107 specifically addresses applications needing 58 positions with secure panel attachment capabilities.
Replacement Considerations
Consult official EDAC documentation for direct cross-references. Verify that any substitute maintains the identical 3.96 mm pitch, 58-position count, and vertical panel-mount form factor to ensure mechanical and electrical interchangeability.
