306-029-520-112

Overview

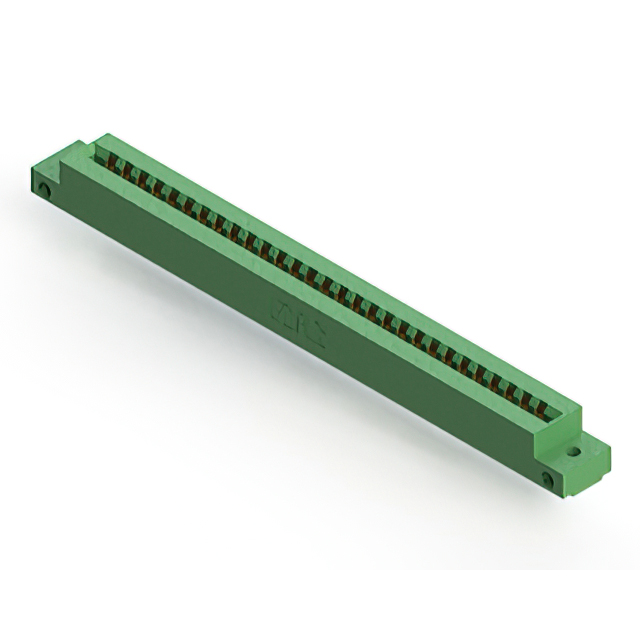

The EDAC Inc. 306-029-520-112 is a standard card edge connector from the 306 series, designed for vertical panel mount applications. It features a dual-edge female configuration with 58 positions arranged in two rows of 29. The connector utilizes a 3.96 mm (0.156 inch) contact spacing and accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. The housing is made of green thermoplastic material.

Feature Summary

• Dual-edge female design accommodating double-sided PCBs
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical panel mount installation style
• Low-profile insulator body construction

Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics assemblies
• Medical device interfaces

Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and board thickness compatibility. Ensure the ordering part number matches the required dual-edge configuration and panel mounting requirements before procurement. Cross-reference distributor listings with manufacturer datasheets to avoid discrepancies in packaging or environmental ratings.

Selection Notes

Select this component when a robust connection for 1.57 mm thick double-sided PCBs is required. The 3.96 mm pitch suits applications needing fewer connections per unit width compared to finer pitches. Verify that the operating temperature range of -40°C to +105°C aligns with the system environment. Confirm that the vertical orientation fits within the mechanical enclosure constraints.

Part Context

This connector belongs to the EDAC 306 series, which specializes in card edge connectors with 3.96 mm spacing. The series offers various position counts and termination types. The 306-029 variant specifically denotes the 29-position-per-row configuration, totaling 58 positions for dual-edge applications. It is distinct from single-edge or different pitch variants within the broader EDAC portfolio.

Replacement Considerations

Direct substitutes include other EDAC 306 series connectors with matching 58-position dual-edge specifications and 3.96 mm pitch. Verify mechanical dimensions and terminal type compatibility before substitution. Generic equivalents may lack the specific gold plating quality or thermoplastic insulation properties documented for this part.
