Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 58POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

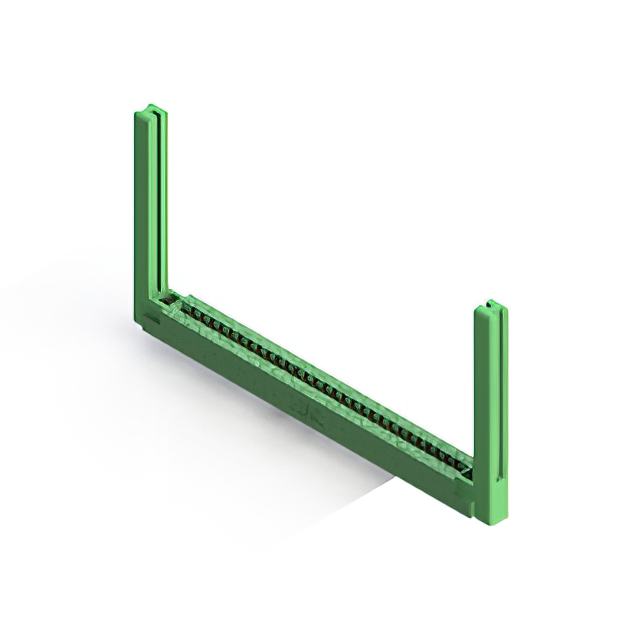

The EDAC Inc. model 306-029-520-158 is a standard card edge connector from the 306 series, designed for dual-edge female connections. It features 58 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts and is housed in a green insulator body. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and employs a single central row termination configuration.
Feature Summary
- Dual-edge female contact design for secure board insertion
- Gold-plated contact surfaces for reliable signal transmission
- Single central row termination architecture
- Green insulator body construction
Applications
- General electronic interconnect solutions
- Industrial equipment panel mounting
- Medical device connectivity systems
Procurement Notes
Verify the specific pin count and termination style against official EDAC documentation before procurement. Confirm that the target application requires a single central row configuration rather than a dual-row layout. Ensure compatibility with the specified 0.156-inch pitch and 0.062-inch board thickness requirements to prevent mechanical mismatch during assembly.
Selection Notes
Select this component when a high-density single-row connection is required for dual-edge cards. The 306 series offers robust mounting options suitable for panel installations. Consider the green insulator color for visual identification within complex assemblies. Validate that the operating environment aligns with the material specifications provided in the manufacturer datasheet.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and mounting configurations. The 306 series is characterized by its versatility in industrial and medical applications, offering both vertical and panel mount styles with consistent 0.156-inch spacing across the product line.
Replacement Considerations
Consult the official EDAC ordering guide for direct substitutes within the 306 series. Verify equivalent parts such as those with differing pin counts but identical pitch and termination types. Cross-reference mechanical dimensions to ensure fitment in existing enclosures without modification.
