306-029-521-101

Overview

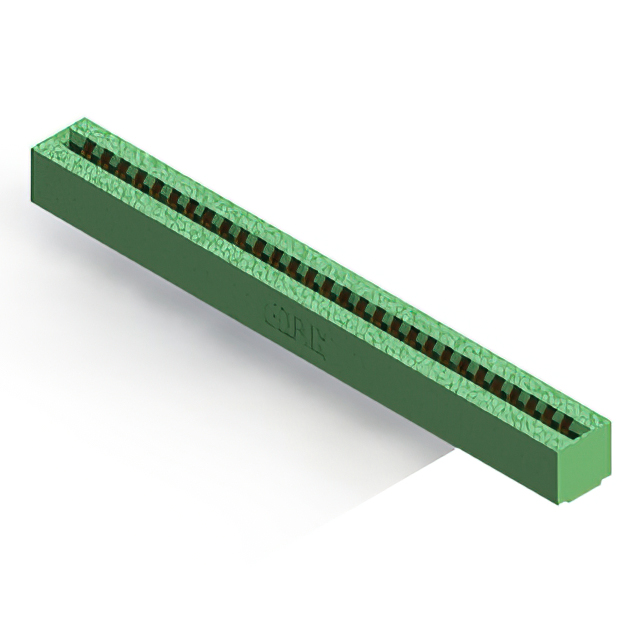

The EDAC Inc. 306-029-521-101 is a standard card edge connector designed for dual-edge board insertion. It features 58 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). This receptacle type provides reliable electrical interconnection in compact electronic assemblies.

Feature Summary

• Dual-edge female connector configuration for secure board retention
• Gold-plated contact surfaces to ensure consistent signal integrity
• Low-profile insulator body design suitable for space-constrained applications

Applications

• Industrial control system backplanes
• Telecommunications equipment modules
• Consumer electronics internal interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, plating specifications, and mounting style. Ensure compatibility with the target PCB thickness and panel cutout dimensions before finalizing procurement orders.

Selection Notes

Select this component when a dual-edge connection is required for a 58-position interface. Confirm that the 0.156-inch pitch aligns with the system's board layout requirements and that the low-profile form factor fits within the designated enclosure height constraints.

Part Context

This part belongs to the EDAC 306 series of card edge connectors. The series is characterized by its robust construction and standardized dimensions, widely used in industrial and commercial electronics where reliable high-density connections are necessary.

Replacement Considerations

Cross-reference with other EDAC 306 series variants such as 306-029-520-101 for similar configurations. Verify mechanical fit and electrical ratings before substituting with components from other manufacturers.
