306-029-521-112

Overview

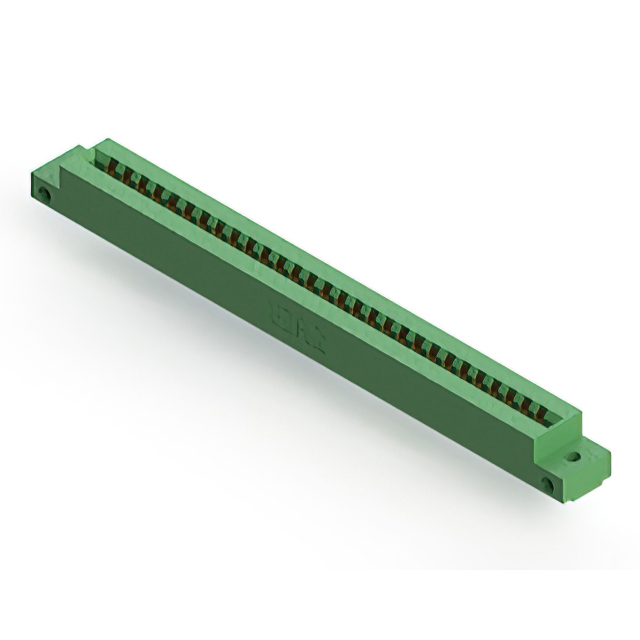

The EDAC Inc. 306-029-521-112 is a dual-edge female card edge connector designed for through-hole mounting. It features 58 positions arranged in two rows with a contact spacing of 0.156 inches (3.96mm). The connector utilizes gold-plated contacts and a green insulator body made from DAP material. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm) and operates within a temperature range of -40°C to 125°C.

Feature Summary

• Dual-edge receptacle design accommodating standard PCB thicknesses
• Gold-plated contacts ensure reliable signal transmission
• Low-profile insulator body construction

Applications

• Industrial control systems
• Communication equipment
• Medical devices
• Energy infrastructure components

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count, plating type, and mounting style. Ensure compatibility with the target PCB stack-up and thermal requirements before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, dual-edge female connector is required for high-reliability applications. Confirm that the board thickness matches the 0.062-inch specification and that the 0.156-inch pitch aligns with the system layout constraints.

Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various configurations for different board thicknesses and contact spacings, providing versatile interconnection solutions for electronic assemblies requiring robust mechanical and electrical performance.

Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 306 series prefix and identical position counts. Verify that any substitute maintains the 0.156-inch spacing and dual-edge female configuration to ensure mechanical fit and electrical continuity.
