Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 60POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：60
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

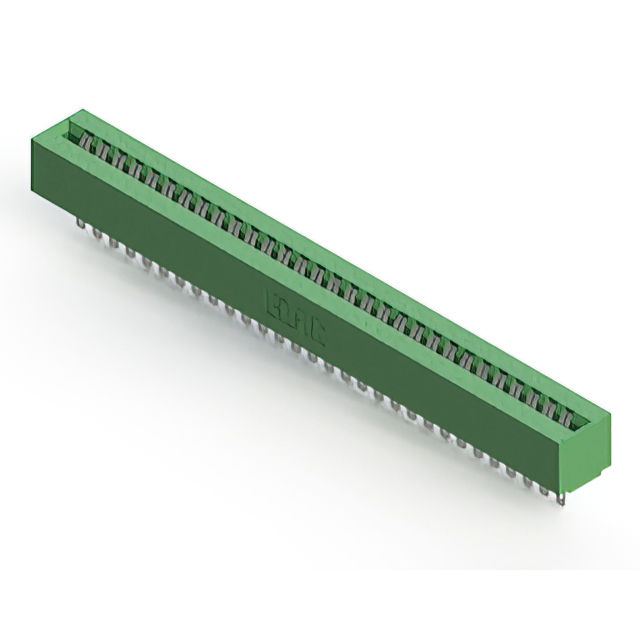

The EDAC Inc. 306-030-400-101 is a dual-edge female card edge connector with 60 positions and a 0.156-inch (3.96mm) pitch. It features tin-plated copper alloy contacts and a green thermoplastic polyester insulator. Designed for panel mount through-hole termination, it supports PCB thicknesses from 0.054 to 0.070 inches. The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.
Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Through-hole termination method for robust panel mounting
- Tin-plated copper alloy contacts ensuring reliable conductivity
Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Medical device circuit board interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to ensure correct contact finish and insulation material specifications. Confirm that the target application requires the standard 0.156-inch pitch and compatible PCB thickness range. Cross-reference the part number with current distributor catalogs to validate availability status and lead times prior to finalizing procurement plans.
Selection Notes
Select this connector when a dual-edge female interface is required for vertical panel mounting applications. Ensure the mating card thickness falls within the specified 0.054 to 0.070-inch range. Verify that the operating environment remains within the -40°C to 105°C thermal limits. Confirm compatibility with standard through-hole soldering processes and tin-plated contact requirements for the intended signal integrity needs.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series provides a wide range of position counts and mounting options for general-purpose interconnect solutions. The 306-030-400-101 specifically addresses applications requiring a 60-position dual-edge female connection with standard spacing and termination methods.
Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for direct substitutes with identical mechanical dimensions and electrical ratings. Verify alternative part numbers for matching pitch, row count, and termination style before implementation.
