306-030-400-104

Overview

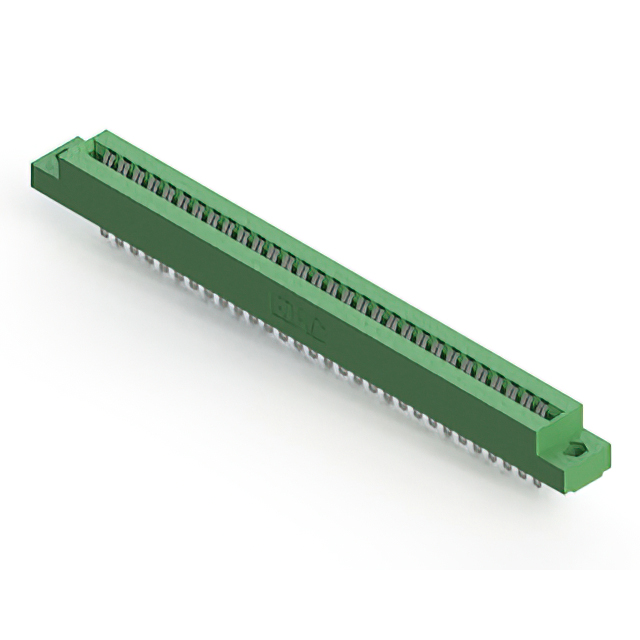

The EDAC Inc. model 306-030-400-104 is a standard card edge connector receptacle featuring 60 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and accepts printed circuit boards with a nominal thickness of 1.57 mm. The component supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. Designed for panel mount installation at a vertical angle, it employs solder pin termination and thermoplastic polyester insulation.

Feature Summary

• Single centerline row configuration with .156 inch contact spacing
• Low profile insulator body construction
• Gold-plated contacts for reliable signal transmission
• Vertical panel mount design for secure board retention

Applications

• Computing and storage interconnects
• Medical device circuit integration
• Aerospace system connections
• Industrial control panel interfaces

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm plating type and termination style. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the 60-position requirement aligns with the design specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status.

Selection Notes

Select this component when a single-row, high-density connection is required for thick PCBs. The 3.96 mm pitch accommodates standard board layouts while maintaining robust mechanical stability. Gold plating ensures durability in environments requiring frequent mating cycles. Verify that the vertical orientation fits within the enclosure constraints and allows adequate clearance for adjacent components.

Part Context

This connector belongs to the EDAC 306 series, which specializes in card edge solutions for demanding applications. The series provides various position counts and termination options to support diverse industrial and commercial needs. EDAC focuses on delivering high-quality interconnect products for global OEMs in sectors such as communications and clean technology.

Replacement Considerations

Compatible substitutes include other EDAC 306 series variants with matching 60 positions and 3.96 mm pitch. Verify that alternative parts maintain the same 1.57 mm board thickness tolerance and vertical mounting requirements.
