306-030-400-107

Overview

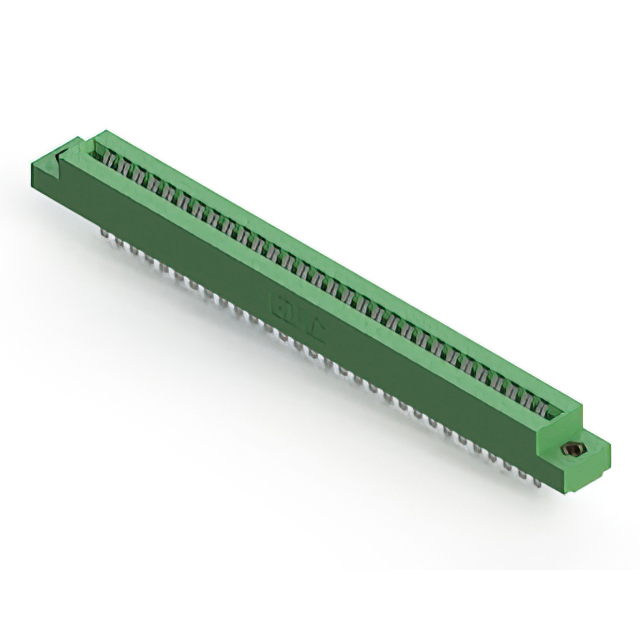

The EDAC Inc. 306-030-400-107 is a standard card edge connector receptacle featuring 30 positions with a 3.96 mm pitch. Designed for panel mount installation at a vertical angle, it accommodates a board thickness of 1.57 mm. The contacts are made of copper alloy with gold plating and utilize a solder pin termination type. Rated for 5 A current, the unit employs a thermoplastic polyester insulator and operates within a temperature range of -40°C to +105°C.

Feature Summary

• Dual-edge cantilever contact design for secure card insertion
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability
• Vertical panel mount configuration with threaded insert flange

Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Automotive electronic modules
• Medical device circuit boards
• Aerospace instrumentation panels

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact mechanical dimensions and flange configurations. Ensure compatibility with the target PCB edge thickness of 1.57 mm before procurement. Cross-reference the RoHS compliance status with the latest regulatory documentation provided by EDAC Inc. to meet environmental standards for your specific region.

Selection Notes

Select this component when a single-row, dual-edge card interface is required for panel mounting. The 3.96 mm pitch suits applications needing wider spacing between signals. Verify that the cantilever contact style aligns with the mating card's retention requirements. Confirm that the 5 A current rating meets the electrical load demands of the circuit design without exceeding thermal limits.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting styles. The 306-030-400-107 specifically denotes a 30-position variant with a thermoplastic insulator and gold contacts. It is distinct from the 307 series which may feature different housing materials or contact arrangements.

Replacement Considerations

Direct substitutes include other EDAC 306 series parts with matching 30 positions and 3.96 mm pitch. Verify mechanical fit for panel mounting and flange thread specifications. Ensure the replacement maintains the same gold-plated contact material and current rating for equivalent performance.
