306-030-400-112

$14.70

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:7415626a9568 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

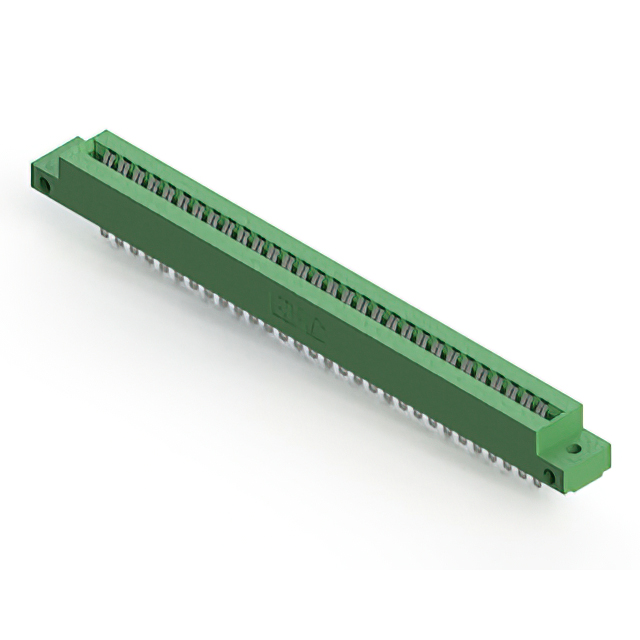

306-030-400-112

Overview

The EDAC Inc. part number 306-030-400-112 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features a single row of 60 female contacts spaced at 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and utilizes tin-plated copper alloy contacts housed in a green thermoplastic insulator body. This low-profile design ensures reliable electrical interconnection within specified environmental limits.

Feature Summary

Accepts PCBs with a nominal thickness of 0.062 inches
Features a low-profile insulator body for compact integration
Utilizes a single centerline row configuration

Applications

Panel-mounted electronic assemblies
Vertical interconnection systems
Standard card edge board interfaces

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications, as variations exist within the 306 series. Ensure compatibility with the target PCB thickness of 0.062 inches before procurement. Confirm that the vertical panel mount style aligns with the mechanical constraints of the final enclosure design to avoid interference issues during assembly.

Selection Notes

Select this component when a single-row, 60-position interface is required for vertical panel mounting. The 0.156-inch pitch accommodates standard board layouts while the 0.062-inch thickness requirement dictates compatible PCB manufacturing tolerances. Consider the tin plating for general-purpose applications where gold plating is not strictly necessary for corrosion resistance or conductivity.

Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge solutions for computing, storage, and industrial sectors. The series offers various position counts and mounting styles, providing versatile interconnect options for OEMs requiring reliable rack and panel connections across diverse global distribution channels.

Replacement Considerations

Cross-reference with other 306-series variants such as 306-030-400-102 if different contact plating is needed. Verify dimensional compatibility with existing panel cutouts and mating card edge profiles before substituting.
