306-030-420-112

Overview

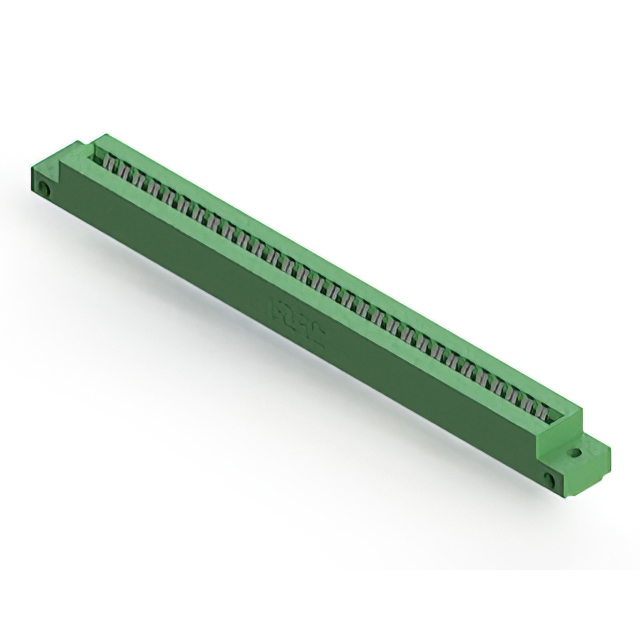

The EDAC Inc. 306-030-420-112 is a standard card edge connector designed for vertical panel mount applications. It features a dual female configuration with 30 positions arranged in a single centerline row, providing a total of 60 contacts. The connector utilizes a 0.156-inch (3.96mm) contact spacing and is engineered to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a low-profile insulator body, this component serves as a reliable interface for edgeboard connections within electronic assemblies requiring robust mechanical stability and precise alignment.

Feature Summary

• Vertical panel mount installation style ensures secure positioning within chassis enclosures
• Low-profile insulator body design facilitates compact integration in space-constrained applications
• Single centerline row configuration provides simplified routing and standardized board compatibility

Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current catalog to ensure correct termination type and plating specifications. Confirm that the target PCB thickness aligns with the connector's acceptance range of 0.062 inches. Check for any recent product change notifications or material updates that may affect compliance status. Ensure that the procurement channel is authorized to guarantee genuine components and valid warranty coverage.

Selection Notes

Select this model when a vertical, single-row card edge interface is required for 0.062-inch thick boards. The 0.156-inch pitch dictates compatible mating card dimensions. Consider the panel mount requirement for mechanical support during insertion. Evaluate thermal and environmental ratings if operating in extreme conditions. Compare against alternative series if different row counts or mounting styles are needed.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various configurations including multiple rows and different mounting options. The 306-030-420-112 specifically addresses needs for 30-position vertical interfaces. It complements other parts in the lineup that provide higher density or different board thickness capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with existing designs by matching pin count, pitch, and board thickness requirements before considering alternatives.
