306-030-420-168

$15.96

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:aaf1e5d2f581 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-030-420-168

Overview

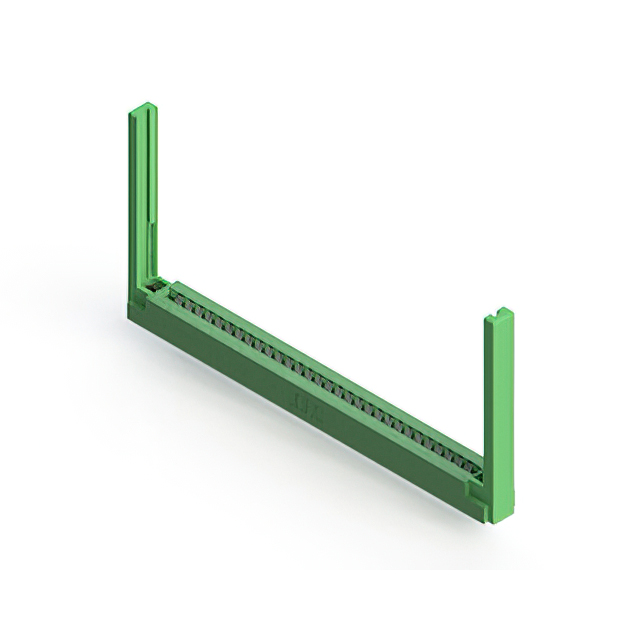

The EDAC Inc. 306-030-420-168 is a dual-edge card edge connector featuring 60 positions with female contacts. It utilizes a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37 to 1.78mm). The connector employs tin-plated copper alloy contacts and a green thermoplastic polyester insulator. Designed for panel mounting via through-hole termination, it operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Feature Summary

Dual-edge configuration supporting non-specified board types
Low-profile insulator body construction
Through-hole termination for secure panel installation

Applications

Industrial control systems requiring robust interconnects
Communication equipment backplanes
Consumer electronic device interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 306 Series Ordering Guide to ensure compatibility with required plating and insulation materials. Confirm that the target PCB thickness falls within the specified 0.054 to 0.070 inch range to guarantee proper contact engagement. Check for any regional distribution restrictions or updated environmental compliance declarations prior to finalizing procurement orders.

Selection Notes

Select this component when a dual-edge connection is required for standard thickness boards. Ensure the design accommodates the 0.156-inch pitch and panel mount footprint. Consider the operating temperature range and material compatibility with adjacent components. Verify that the tin plating meets the necessary corrosion resistance requirements for the intended environment.

Part Context

This part belongs to the EDAC 306 series, which provides standardized card edge connectors with 0.156-inch spacing. The series offers various position counts and mounting options for diverse electronic applications. The 306-030-420-168 specifically addresses needs for 60-position dual-edge connections with through-hole termination capabilities.

Replacement Considerations

Compatible substitutes include other EDAC 306 series parts with matching pin counts and spacing, such as the 306-030-421-104 for similar dual-edge configurations. Cross-reference dimensions and electrical ratings before substitution.
