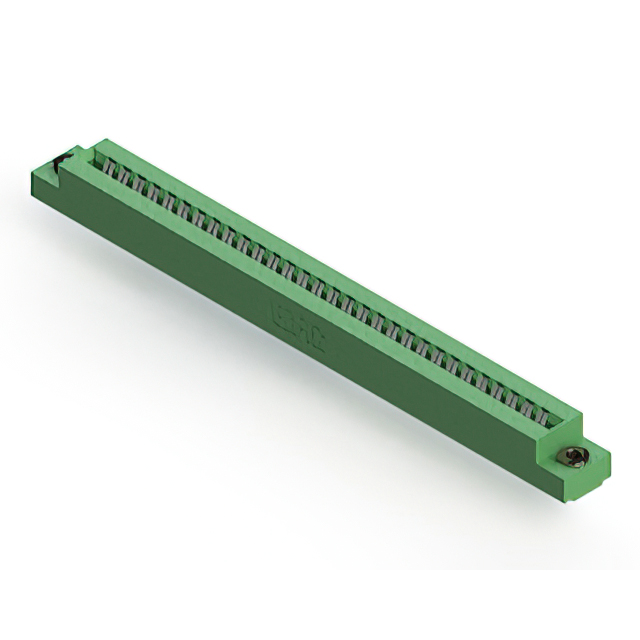

306-030-421-103

$15.35

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:377d0c11cb1e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-030-421-103

Overview

The EDAC Inc. 306-030-421-103 is a dual-edge card edge connector designed for panel mount and through-hole termination. It features 30 positions with a 0.156-inch (3.96mm) pitch, utilizing gold-plated copper alloy contacts. The housing is constructed from thermoplastic material, providing insulation resistance of 5 GOhms. Rated for 5A current, it operates within a temperature range of -40°C to +105°C. The component supports single-row configurations and is compliant with RoHS3 standards.

Feature Summary

Dual-edge receptacle design for secure board insertion
Gold contact plating ensures reliable signal transmission
Thermoplastic insulation provides high dielectric strength
Panel mount and through-hole installation flexibility

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument interfaces
Embedded computing module connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating and termination style. Ensure compatibility with target PCB thickness and mounting hole dimensions. Cross-reference the ECCN classification for export compliance requirements. Confirm RoHS3 status aligns with project environmental regulations before finalizing procurement orders.

Selection Notes

Select this connector when a dual-edge interface with a 3.96mm pitch is required. Verify that the 5A current rating meets circuit load demands. Ensure the operating temperature range covers the application environment. Check mechanical constraints for panel cutout dimensions and mounting height clearance relative to adjacent components on the assembly.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-043-421-104 variant shares similar structural characteristics but differs in pin count. This part number represents a specific configuration within the broader EDAC interconnect portfolio.
