306-030-421-108

$15.35

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:e1b37ac7935b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-030-421-108

Overview

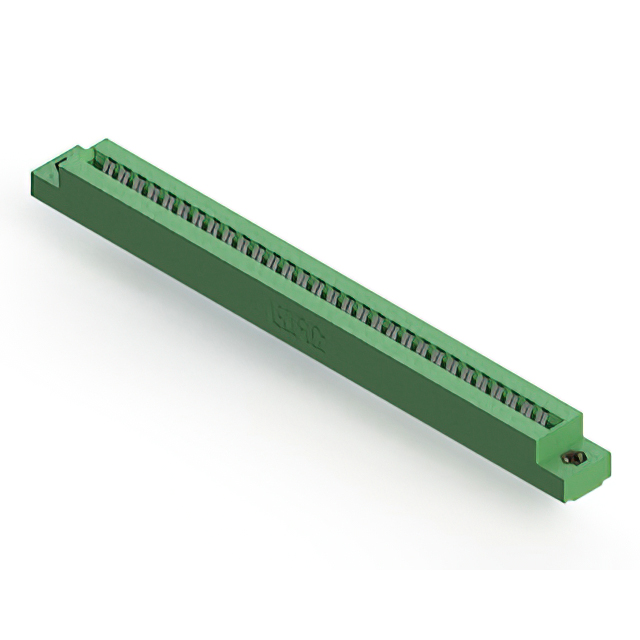

The EDAC Inc. 306-030-421-108 is a standard card edge connector from the 306 series, designed for panel mount applications. It features a dual female configuration with 60 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and supports board thicknesses ranging from 1.37 mm to 1.78 mm. Termination is achieved via solder pins, and contacts are made of copper alloy with tin plating. The housing is constructed from green thermoplastic polyester, ensuring durability and stability.

Feature Summary

Dual female contact configuration for secure card edge mating
Panel mount installation style with vertical orientation
Thermoplastic polyester housing material for environmental resistance

Applications

Industrial control systems requiring robust interconnects
Communication equipment backplanes
Consumer electronics assembly

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination type, and plating specifications. Ensure compatibility with target PCB thickness and mounting constraints before procurement. Cross-reference manufacturer datasheets for accurate dimensional drawings and electrical ratings.

Selection Notes

Select this component when a dual-row, panel-mount solution with a 3.96 mm pitch is required. Confirm that the tin-plated contacts meet the corrosion resistance and conductivity requirements for the intended application environment. Verify that the vertical orientation fits within the available chassis space.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options, providing flexibility for different board densities. The 306 series is characterized by its reliable performance in general-purpose electronic applications.

Replacement Considerations

Consult the official EDAC 306 Series Ordering Guide for direct substitute part numbers with identical or compatible specifications. Do not assume interchangeability with other series without verifying mechanical and electrical parameters.
