306-030-500-112

Overview

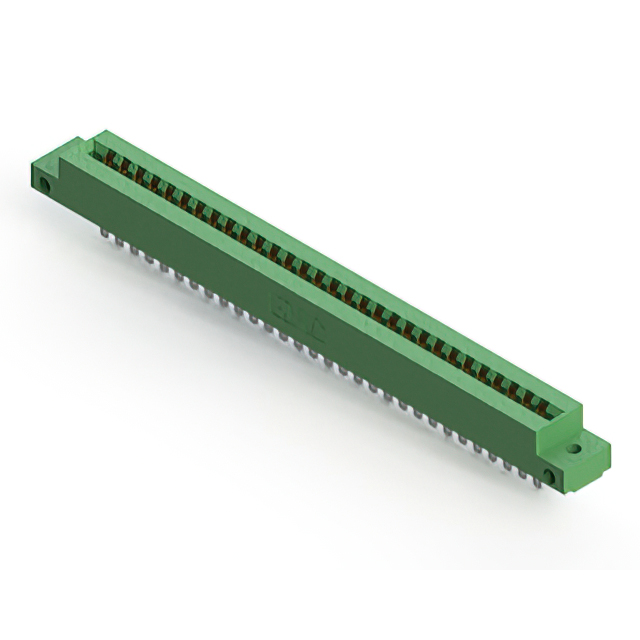

The EDAC Inc. 306-030-500-112 is a card edge connector from the 306 Series, designed for panel mount installation. It features a dual-edge female configuration with 60 positions arranged in two rows of thirty. The contact spacing is 0.156 inches (3.96 mm), and it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are gold-plated copper alloy with a suspension design, housed in a green thermoplastic insulator body.

Feature Summary

• Dual-edge female connector design accommodating non-specified board types
• Gold-plated suspension contacts for reliable electrical connection
• Low-profile insulator body constructed from thermoplastic material

Applications

• Computing and storage systems
• Medical equipment interfaces
• Industrial control panels

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required board thickness and mounting hardware. Confirm RoHS compliance status and environmental certifications prior to procurement. Cross-reference the part number with official distributor catalogs to validate availability and lead times. Ensure that the selected variant matches the intended application voltage and current ratings specified in the technical documentation.

Selection Notes

Select this component when a high-density dual-edge interface is required for panel-mounted applications. The 0.156-inch pitch allows for broader trace spacing compared to finer pitches. Consider the thermoplastic housing material for general-purpose insulation needs. Verify that the board thickness falls within the acceptable range for proper contact engagement. Evaluate the mechanical stability provided by the panel mount style for robust system integration.

Part Context

This part belongs to the EDAC 306 Series, which specializes in card edge and rack & panel interconnect solutions. The series offers a wide range of configurations for computing, medical, aerospace, and industrial sectors. EDAC focuses on delivering quality interconnect products with rigorous inspection standards. The 306 Series is known for its versatility in handling various board specifications and mounting requirements.

Replacement Considerations

Consult the official EDAC 306 Series ordering guide for direct substitutes. Check for variations in contact count, pitch, or mounting style. Ensure any replacement maintains the same dual-edge female configuration and gold plating specification. Verify mechanical dimensions and thermal ratings match the original design constraints.
