306-030-520-112

$14.70

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:8a338fd5e63d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-030-520-112

Overview

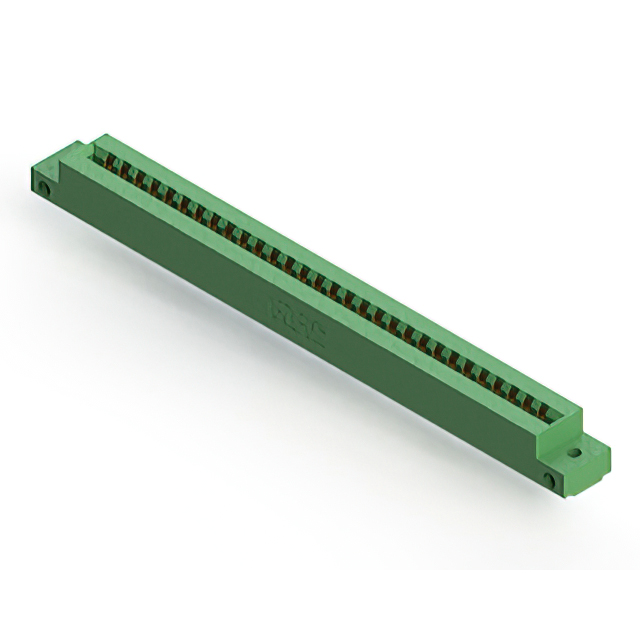

The EDAC Inc. 306-030-520-112 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features a single row of 30 positions with a contact spacing of 3.96 mm (0.156 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are made of copper alloy and gold plated to ensure reliable signal transmission. Rated for 5 A current, it offers an insulation resistance of 5 GOhms. The housing is constructed from thermoplastic material, suitable for operating temperatures ranging from -40°C to +105°C.

Feature Summary

Accepts 0.062 inch nominal thickness PCBs
Single centerline row configuration
Low profile insulator body design

Applications

Industrial control systems
Communication equipment
Consumer electronics assemblies

Procurement Notes

Verify the specific suffix code against the manufacturer's official datasheet to confirm terminal termination style and flange characteristics. Ensure the selected variant matches the required board thickness tolerance and mounting hardware specifications before procurement.

Selection Notes

Select this component when a single-row card edge interface with 3.96 mm pitch is required for panel-mounted installations. Confirm that the target PCB thickness aligns with the 1.57 mm specification and verify that the thermal rating meets the operational environment requirements.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various configurations including different row counts, termination styles, and flange options. The 306 series is widely used in industrial and commercial applications requiring robust interconnect solutions.

Replacement Considerations

Consult the EDAC official cross-reference documentation for verified substitute part numbers. Generic equivalents may not match the precise flange dimensions or contact plating specifications required for this application.
