306-030-520-158

Overview

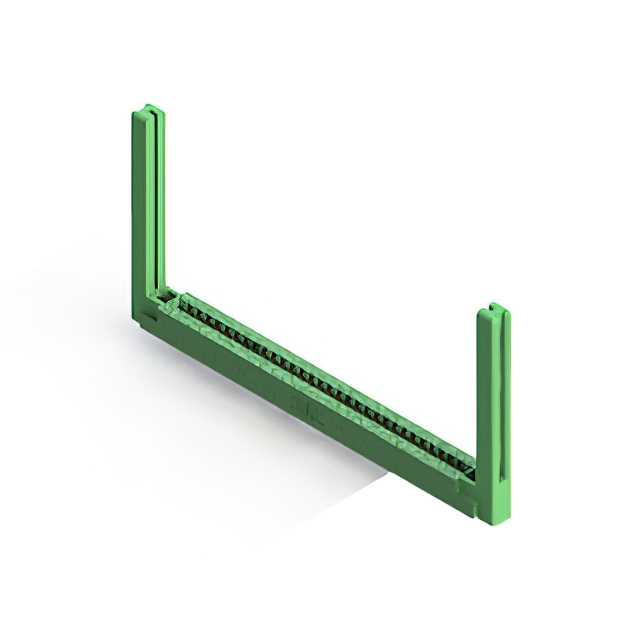

The EDAC Inc. part number 306-030-520-158 is a standard card edge connector designed for panel mounting applications. It features a dual female configuration with 60 positions arranged in two rows, providing a total of 60 contact points. The connector utilizes a 0.156-inch (3.96 mm) contact spacing and is compatible with printed circuit boards having a nominal thickness of 0.062 inches (1.57 mm). The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission. The insulator body is made of thermoplastic material, offering durability and electrical insulation properties suitable for industrial environments.

Feature Summary

• Dual female edge connector design accommodating non-specified dual-edge cards
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Panel mount installation style with low-profile thermoplastic insulator body
• Compatible with 0.062 inch nominal thickness printed circuit boards

Applications

• Industrial control systems requiring robust board-to-board connectivity
• Medical interconnect solutions demanding reliable signal integrity
• Agricultural technology equipment operating in harsh environmental conditions
• General electronic instrumentation utilizing standard card edge interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact termination type and plating specifications. Ensure compatibility with the target PCB thickness of 0.062 inches before procurement. Cross-reference the part number with current distributor availability as supply status may vary. Confirm RoHS compliance requirements if applicable to the end product assembly.

Selection Notes

Select this component when a high-density 60-position connection is required for dual-edge cards. The 0.156-inch pitch allows for broader trace routing compared to finer pitches. Consider the gold plating for applications requiring frequent mating cycles or high reliability. Verify that the panel mount footprint aligns with the mechanical constraints of the enclosure design.

Part Context

This component belongs to the EDAC 306 Series, which offers a range of card edge connectors with varying position counts and termination options. The series is characterized by its standardized 0.156-inch spacing and robust construction. Similar parts in the series include variants with different pin counts such as 306-030-521-158 or different plating options like tin. The 306 series is widely used in industries requiring durable interconnect solutions.

Replacement Considerations

Direct substitutes within the same series include 306-030-521-158, which shares the same position count and spacing but may differ in specific termination details. Always verify mechanical dimensions and electrical ratings before substituting. Consult the official EDAC ordering guide for cross-referencing equivalent parts with modified suffixes.
