Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 60POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：30
- Number of Positions：60
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

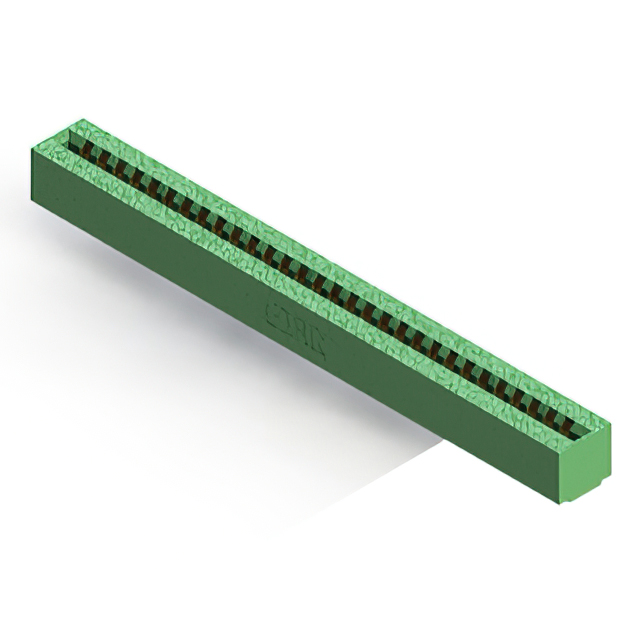

The EDAC Inc. 306-030-521-101 is a standard card edge connector featuring 30 positions with a 3.96 mm pitch. Designed for panel mounting in a vertical orientation, it utilizes gold-plated copper alloy contacts rated for 5 A current and 5 GOhms insulation resistance. The thermoplastic housing supports PCB thicknesses of 1.57 mm and operates within a temperature range of -40 C to +105 C.
Feature Summary
- Vertical panel-mount design for secure board integration
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Thermoplastic housing provides thermal stability up to 105 C
Applications
- Industrial control systems requiring robust interconnects
- Medical equipment needing durable signal pathways
- Agricultural technology hardware exposed to harsh environments
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm contact plating, housing color, and termination style. Ensure compatibility with target PCB thickness and panel cutout dimensions before procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability status and regional distribution restrictions.
Selection Notes
Select this component when a single-row, vertical card edge interface is required with a 3.96 mm pitch. It is suitable for applications demanding high insulation resistance and operation in elevated temperatures. Verify that the 1.57 mm board thickness matches the design specifications and that the 5 A current rating meets the circuit requirements.
Part Context
This connector belongs to the EDAC 306 series, which offers various position counts and termination options. The series is designed for general-purpose interconnect solutions across communication, consumer electronics, and industrial sectors. It complements other EDAC products like the 387 and 887 series for diverse card edge needs.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC technical support or authorized distributors for direct replacements or pin-compatible alternatives within the same series.
