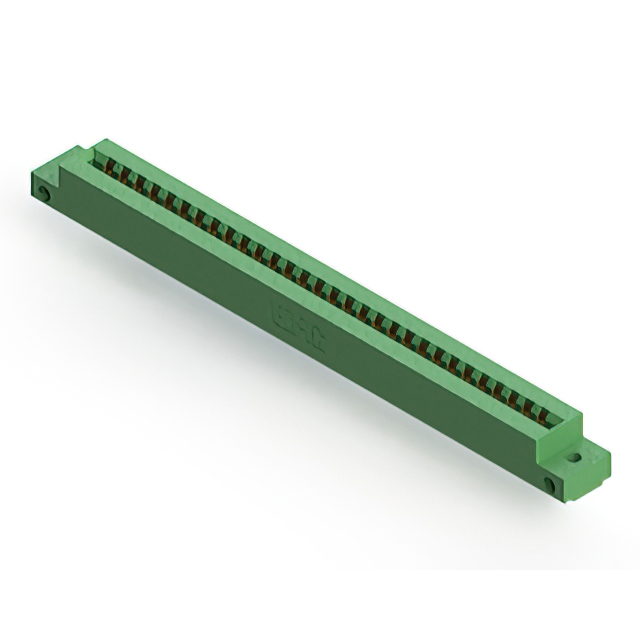

306-030-521-112

$14.70

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:e7309b874b6c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 60POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：30
Number of Positions：60
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-030-521-112

Overview

The EDAC Inc. 306-030-521-112 is a dual-row female card edge connector designed for panel mount installation. It features a 0.156-inch (3.96mm) contact spacing and accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component provides 60 positions arranged in two rows, utilizing copper alloy contacts with gold plating for reliable signal transmission. It operates within a temperature range of -40°C to +105°C.

Feature Summary

Dual-row configuration providing 60 total connection points
Gold-plated copper alloy contacts for durability
Low-profile insulator body construction
Accepts standard 0.062-inch thick PCBs

Applications

Industrial control systems requiring robust interconnects
Medical equipment interface modules
Agricultural technology hardware connections
General-purpose electronic board-to-board linking

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official catalog to ensure correct termination style and mounting configuration. Confirm that the required PCB thickness aligns with the connector's design specifications before procurement. Check current availability status as lead times may vary based on production schedules.

Selection Notes

Select this model when a low-profile, dual-row solution is required for 0.062-inch thick boards. Ensure the application environment falls within the specified operating temperature range. Consider the panel mount requirement during mechanical design integration to secure the connector properly.

Part Context

This component belongs to the EDAC 306 series, which offers various configurations for card edge applications. The series includes options for different row counts, contact spacings, and termination methods. This specific part represents a standard dual-row variant optimized for general industrial use cases.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with identical pin counts and spacing. Verify compatibility with existing PCB layouts and mounting holes before switching to alternative part numbers.
