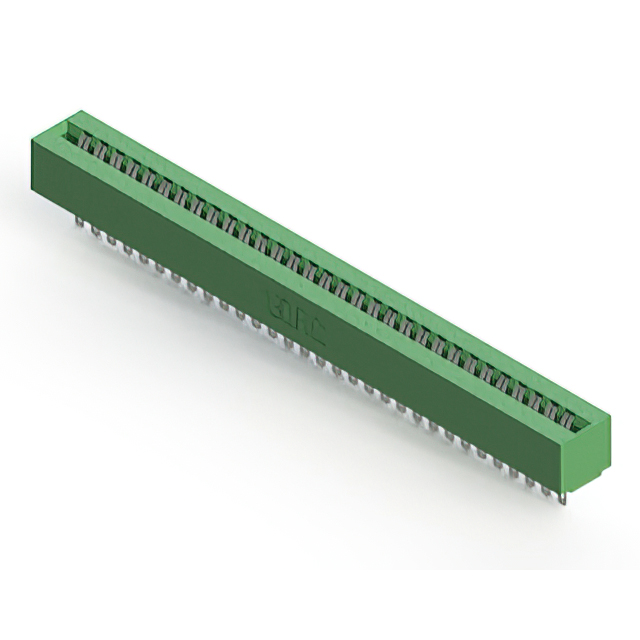

306-031-400-101

$14.00

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:68d29eca29c5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：31
Number of Positions：62
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-031-400-101

Overview

The EDAC Inc. 306-031-400-101 is a card edge connector designed for single-side contact applications. It features 31 positions with a female contact configuration, suitable for panel mount installation in a straight orientation. The connector utilizes a 0.156-inch (3.96mm) pitch and operates within a temperature range of -40°C to +105°C. Constructed with thermoplastic polyester housing, it provides an insulation resistance of 5 GOhms and supports a current rating of 5 A. The contacts are tin-plated to ensure reliable signal transmission.

Feature Summary

Single-side contact design for straightforward board integration
Thermoplastic polyester housing for structural stability
Tin-plated contacts ensuring consistent electrical performance

Applications

Industrial control systems requiring robust interconnects
Communication equipment interface modules
Medical device internal circuit connections

Procurement Notes

Verify the specific pin count and contact configuration against the target PCB layout before procurement. Confirm that the operating temperature range meets the environmental requirements of the final assembly. Ensure the straight panel mount style aligns with the mechanical constraints of the enclosure design. Cross-reference the insulation resistance specifications with system safety standards.

Selection Notes

Select this component when a single-sided card edge interface is required for moderate current applications. The 31-position count suits medium-density data or power distribution needs. Consider the 0.156-inch pitch compatibility with existing board edge designs. Evaluate the straight mounting orientation against available panel space. Assess the thermal performance limits for high-temperature operational environments.

Part Context

This part belongs to the standard card edge connector series from EDAC Inc., focusing on reliable connectivity for various electronic assemblies. The 306 series typically offers durable construction suitable for repeated insertion cycles. It serves as a critical interface between flexible or rigid printed circuits and backplanes or chassis-mounted structures.
