306-031-400-102

Overview

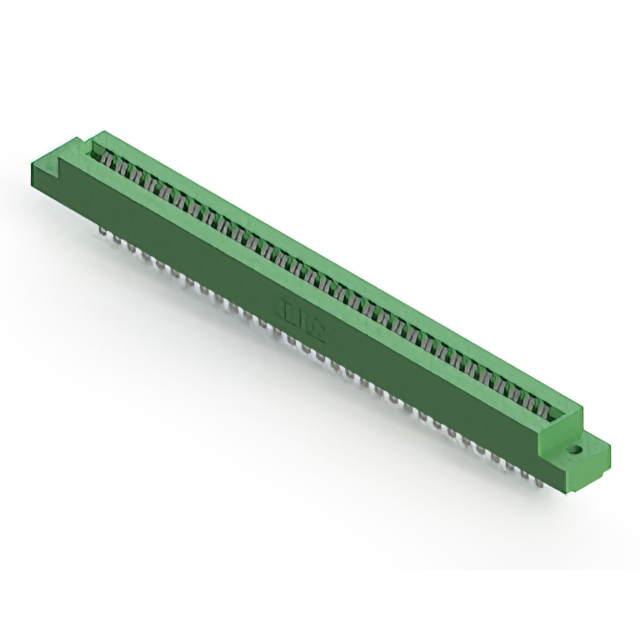

The EDAC Inc. 306-031-400-102 is a standard card edge connector featuring 62 positions with a 3.96 mm pitch. It utilizes a dual-edge female contact configuration and accepts printed circuit boards with a nominal thickness of 1.57 mm. The contacts are tin-plated copper alloy, rated for 5 A current, while the thermoplastic housing provides insulation resistance of 5 GOhms. Designed for vertical panel mounting, this component belongs to the 306 series and offers reliable interconnection for high-density applications.

Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Vertical panel mounting style for stable structural integration
• Thermoplastic insulator body designed for high-temperature environments
• Low-profile construction optimized for space-constrained assemblies

Applications

• Computing and storage system interconnects
• Medical device hardware interfaces
• Industrial control panel connections
• Communications network equipment modules

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct plating and termination specifications. Confirm that the required position count and board thickness align with the design constraints. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS requirements if applicable to the target market regulations.

Selection Notes

Select this model when a dual-edge female connector with a 3.96 mm pitch is required for vertical panel mounting. The 62-position capacity suits applications needing high I/O density within a standard form factor. Consider the tin-plated contacts for cost-effective solutions where gold plating is not strictly mandated. Verify that the 1.57 mm board thickness compatibility matches the target PCB design specifications.

Part Context

EDAC Inc. has been a leader in card edge and rack & panel connectors since 1966. The 306 series represents their standard range of interconnect solutions. This part number falls within the broader portfolio serving computing, medical, aerospace, and industrial sectors. The manufacturer emphasizes rigorous quality assurance and global logistics support for these components.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC technical resources for potential cross-references or updated series replacements.
