306-031-420-108

$15.72

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:198297996eec Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：31
Number of Positions：62
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-031-420-108

Overview

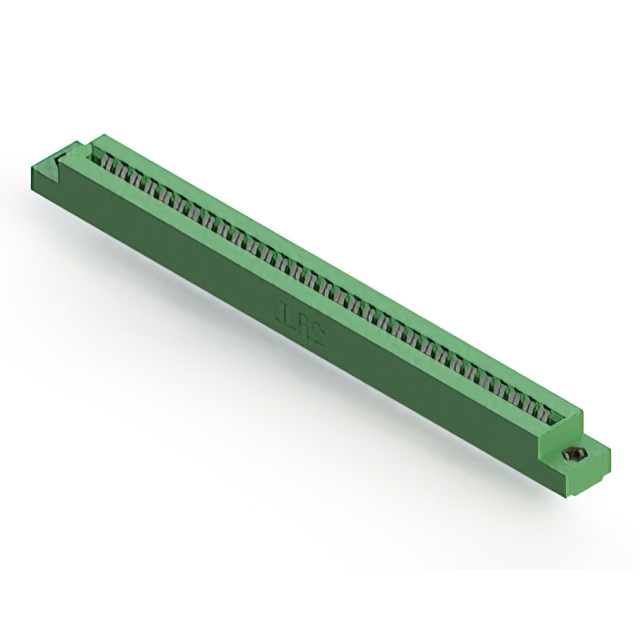

The EDAC Inc. 306-031-420-108 is a standard card edge connector receptacle featuring 62 positions with a single centerline row. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The connector employs tin-plated contacts for termination via solder pins, housed in a green thermoplastic polyester insulator body designed for low-profile panel mount installation.

Feature Summary

Accepts nominal 0.062 inch thick PCBs
Low profile insulator body design
Single centerline row configuration

Applications

Standard card edge interface connections
Panel mounted electronic assemblies
General purpose board-to-board interconnects

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating type and terminal style. Ensure the selected variant matches the required PCB thickness tolerance and mounting orientation for the target application. Confirm availability status through authorized distributors as supply levels may vary by region.

Selection Notes

Select this component when a single-row female card edge connector with 0.156 inch spacing is required. Verify that the mating PCB edge has the correct 0.062 inch thickness. Consider the tin plating option if gold plating is not specified for the environment. Check the operating temperature range requirements against the component specifications.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination styles. The 306-031-420-108 specifically denotes a 62-position dual female connector with tin plating and solder pin termination, distinct from other suffixes that may indicate different plating or housing colors.

Replacement Considerations

Direct substitutes within the same series include variants with different position counts or plating options such as 306-031-420-101 or 306-031-420-107. Cross-brand replacements require matching the 3.96 mm pitch, 62 position count, and 1.57 mm PCB thickness acceptance criteria.
