306-031-420-112

$15.08

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:99d2a38be28b Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：31
Number of Positions：62
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-031-420-112

Overview

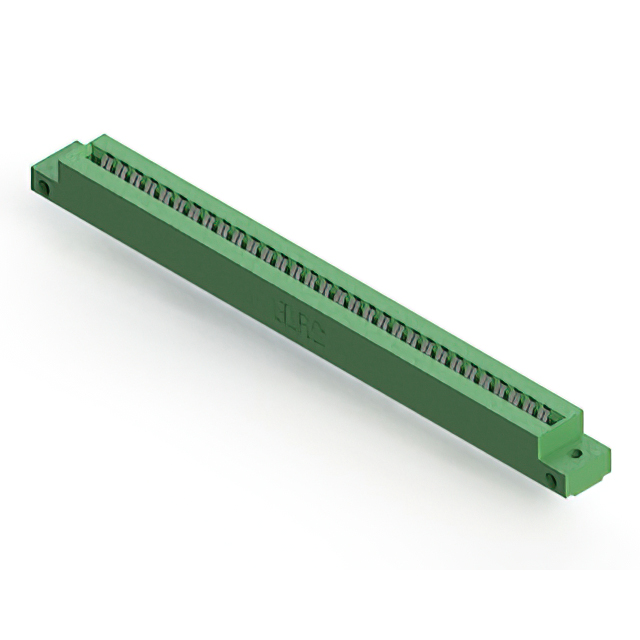

The EDAC Inc. 306-031-420-112 is a dual female card edge connector with 62 positions and a 0.156-inch (3.96mm) contact spacing. It features a single centerline row, gold-plated contacts, and a green thermoplastic insulator. Designed for panel mounting via solder lug termination, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Feature Summary

Accepts nominal 0.062 inch thick printed circuit boards
Low profile insulator body construction
Gold-plated contact surfaces for reliable connectivity

Applications

Card edge interconnect solutions
Rack and panel applications
Industrial computing systems
Medical equipment interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to ensure correct pin count, termination style, and plating specifications. Confirm that the required board thickness aligns with the component's design parameters before procurement. Cross-reference the part number with current distributor catalogs to validate availability and lead times, as manufacturing schedules may vary.

Selection Notes

Select this connector when a dual-sided female interface is required for standard 0.062 inch thick PCBs. Ensure the application environment supports the specified operating temperature range. Verify that the panel mounting configuration matches the mechanical constraints of the enclosure. Consider the single centerline row layout for space-efficient designs requiring high density connections.

Part Context

This component belongs to the EDAC 306 series, which specializes in card edge and rack & panel interconnect solutions. The series is designed for robust performance in computing, storage, and industrial sectors. EDAC provides comprehensive design and manufacturing support for these interconnect products, ensuring quality standards across global distribution channels.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes. Compatible alternatives within the same series may offer variations in pin count or termination style while maintaining identical spacing and board thickness compatibility.
