Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 62POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：31
- Number of Positions：62
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

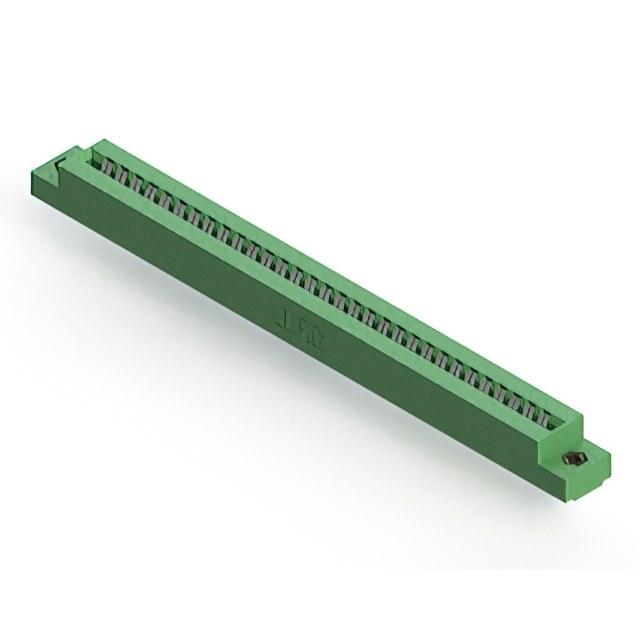

The EDAC Inc. model 306-031-421-107 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features 62 positions in a single row with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contact plating is tin, and the housing material is green thermoplastic polyester. It operates within a temperature range of -40°C to 105°C.
Feature Summary
- Accepts PCBs with a nominal thickness of 0.062 inches (1.57 mm)
- Features a low profile insulator body
- Utilizes a single centerline row configuration
Applications
- Panel mounted electronic assemblies
- Vertical interconnection systems
- Standard card edge interface designs
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating type, and board thickness compatibility. Ensure the selected variant matches the required panel mount style and vertical orientation for the intended application. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and RoHS compliance status prior to procurement.
Selection Notes
Select this component when a 62-position vertical card edge connector is required for panel mounting. Confirm that the target PCB thickness aligns with the 0.062-inch specification. Verify that the tin-plated contacts meet the electrical requirements for the signal lines. Ensure the single-row layout fits within the available board space constraints.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for dual-edge or single-edge cards. The 306-031-421-107 specifically provides a 62-position solution with a 3.96 mm pitch, suitable for high-density vertical connections in industrial and commercial equipment.
Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or plating options. Verify mechanical compatibility with existing panel cutouts and PCB dimensions before replacing.
