Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 62POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：31
- Number of Positions：62
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

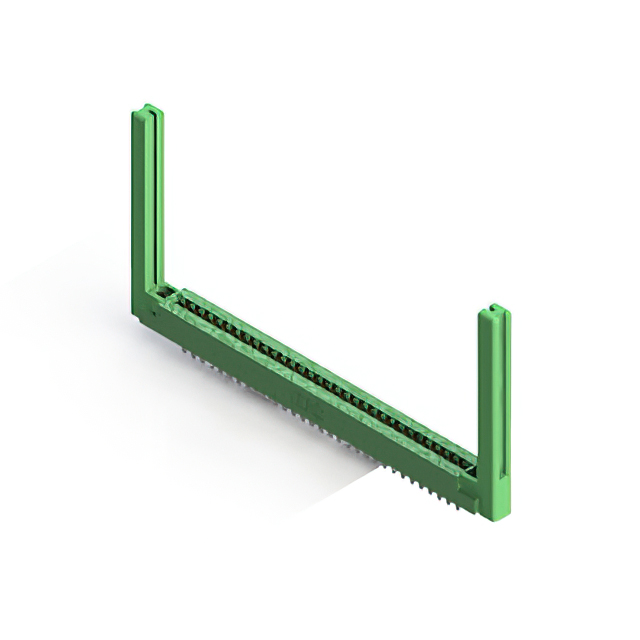

The EDAC Inc. 306-031-500-158 is a dual-edge female card edge connector from the 306 series, designed for panel mount applications. It features 62 positions with a 0.156-inch (3.96mm) pitch and utilizes gold-plated contacts on a copper alloy substrate. The insulator is green thermoplastic polyester, rated for operation between -40°C and +105°C. This component supports non-specified dual-edge cards and includes flange features for secure mounting.
Feature Summary
- Dual-edge female contact configuration for robust signal integrity
- Gold-plated terminals ensure reliable conductivity in harsh environments
- Panel mount design with integrated flange for structural stability
Applications
- Medical interconnect systems requiring durable connections
- Agricultural technology equipment operating in harsh conditions
- Industrial control panels utilizing standard card edge modules
Procurement Notes
Verify the specific ordering suffix to confirm contact plating and termination style. Confirm that the 62-position count matches the target PCB design requirements. Ensure the panel mount orientation aligns with the enclosure layout. Check RoHS compliance status if restricted substances are prohibited in the final assembly process.
Selection Notes
Select this model when a high-pitch 3.96mm interface is required for dual-edge cards. The gold plating is suitable for applications demanding low contact resistance over extended cycles. Consider the vertical panel mount form factor for space-constrained chassis designs where direct board-to-board connection is not feasible.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-031-500-158 specifically addresses needs for higher pin counts with a 0.156-inch pitch, distinguishing it from lower-density or different pitch variants within the broader product family.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating cards before considering alternative sources.
