306-031-521-101

$14.00

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:1d326f9236b0 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 62POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：31
Number of Positions：62
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-031-521-101

Overview

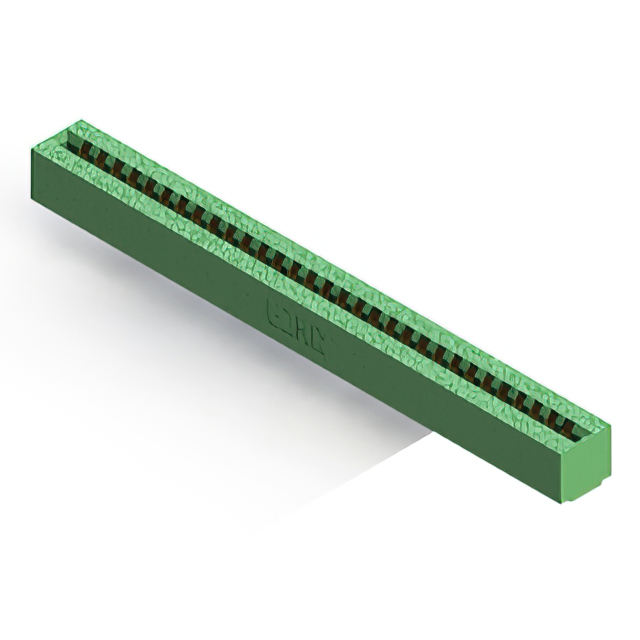

The EDAC Inc. 306-031-521-101 is a standard card edge connector featuring 62 positions in a dual female configuration. It utilizes a contact spacing of 0.156 inches (3.96 mm) and is designed to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are gold-plated, and the insulator body is green. This component belongs to the EDAC 306 series of edgeboard connectors.

Feature Summary

Dual row female contact configuration for secure board insertion
Gold-plated contacts to ensure reliable signal transmission
Low profile insulator body design for compact integration
Green colored housing for visual identification

Applications

Computing and storage systems
Medical interconnect solutions
Industrial control panels
Communications network equipment

Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact plating and material specifications. Ensure the target application supports the 0.156-inch pitch and 0.062-inch board thickness requirements. Confirm RoHS compliance status through the manufacturer's documentation prior to final procurement decisions.

Selection Notes

Select this connector when a dual-row interface with 62 positions is required for high-density applications. The 0.156-inch spacing accommodates standard board layouts, while the gold plating offers durability. Consider the vertical mounting style and panel installation requirements during mechanical design integration.

Part Context

EDAC Inc., established in 1966, specializes in card edge and rack & panel interconnect solutions. The company serves global OEMs in computing, medical, aerospace, and industrial sectors. The 306 series represents their standard range of edgeboard connectors designed for robust performance in demanding environments.

Replacement Considerations

Consult the EDAC catalog for direct substitutes within the 306 series. Verify that alternative part numbers match the 62-position count, 0.156-inch pitch, and dual female configuration. Cross-reference mounting styles and board thickness compatibility before substitution.
